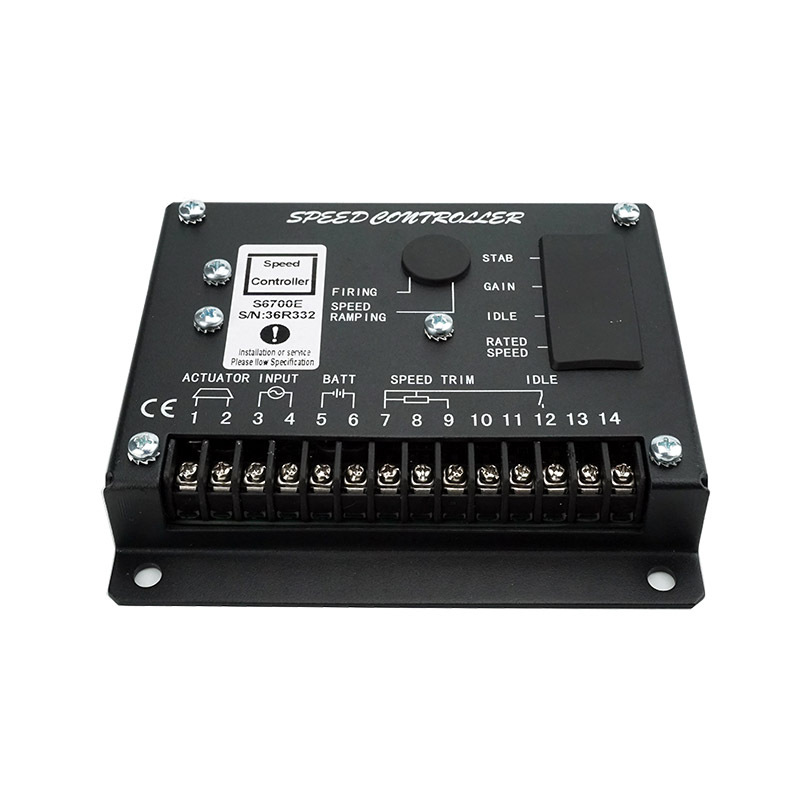

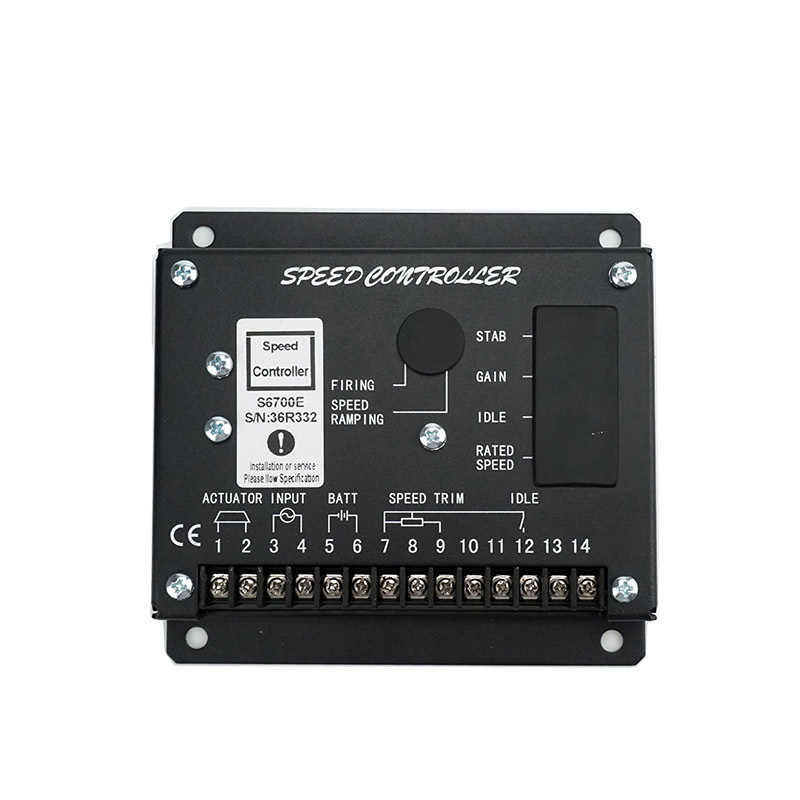

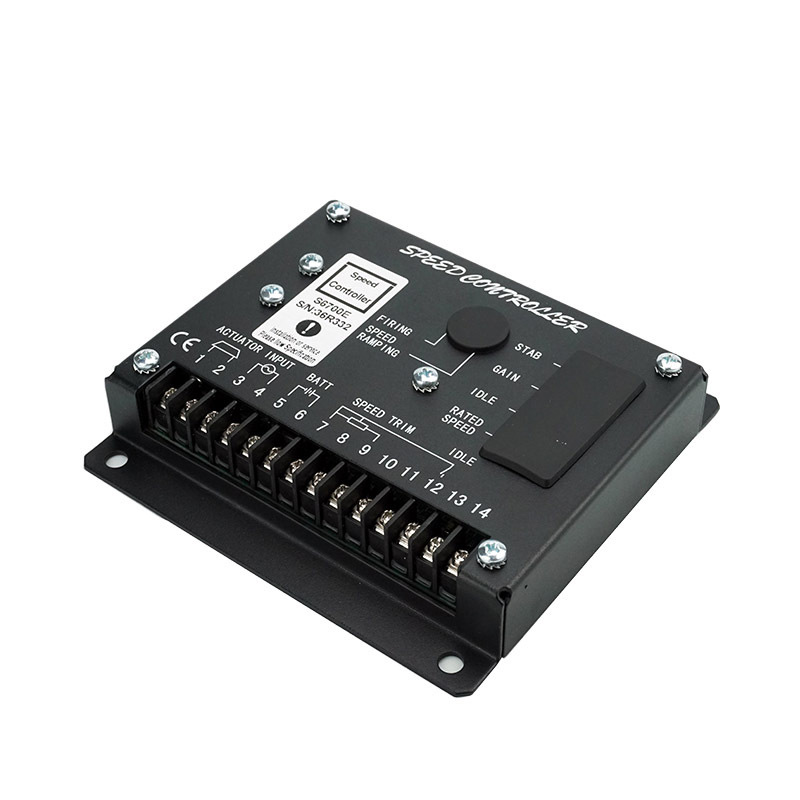

Speed Control Unit S6700E Diesel Generator Speed Governor
Speed Control Unit S6700E Diesel Generator Speed Governor Speed Control Unit S6700E Diesel Generator Speed Governor Speed Control Unit S6700E Diesel Generator Speed Governor Speed Control Unit S6700E Diesel Generator Speed Governor

Speed Control Unit S6700E Diesel Generator Speed Governor

Product ID : S6700E
Product Tags : Generator Speed GovernorGenset Generator Engine Speed Governor Control Unit Controller
Product Attributes :

The S6700E Speed control Unit is an All-Electronic Device Designed to control engine speed with fast and precise response to transient load changes. Based on a closed loop control. The basic characteristics of this unit is to reach rated speed and power as well as reducing smoke exhaust through adjustment of firing fuel and speed-rate. The S6700E speed control Unit provides a series of protection once the power supply is reversely connected. Transient overvoltage or actuator fault happens, or Speed input breaks.

Product Description
Electronic Speed Governor S6700H S6700E
Speed stablity
Better than ±0.25%
Speed range
1Khz ~ 7.5Khz
Thermostablity
Max ±1%
Idle adjustment
160 ± 20Hz ~ Rated speed 95%
Power input

Voltage
12V DC 24V DC
Output
50mA
Signal of speed sensor
0.5 ~ 120V RMS
Online Inquiry
