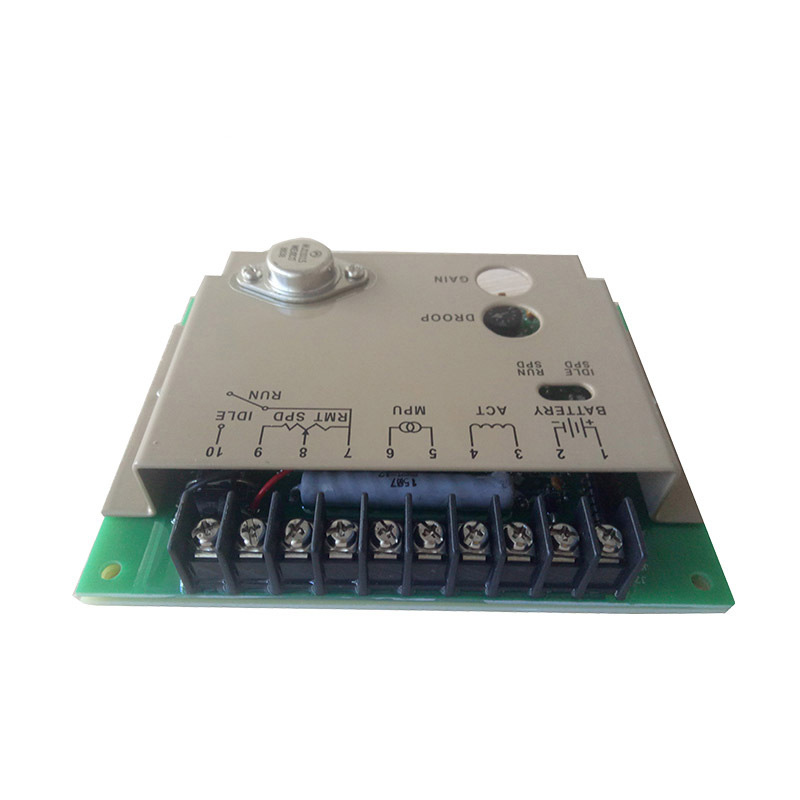

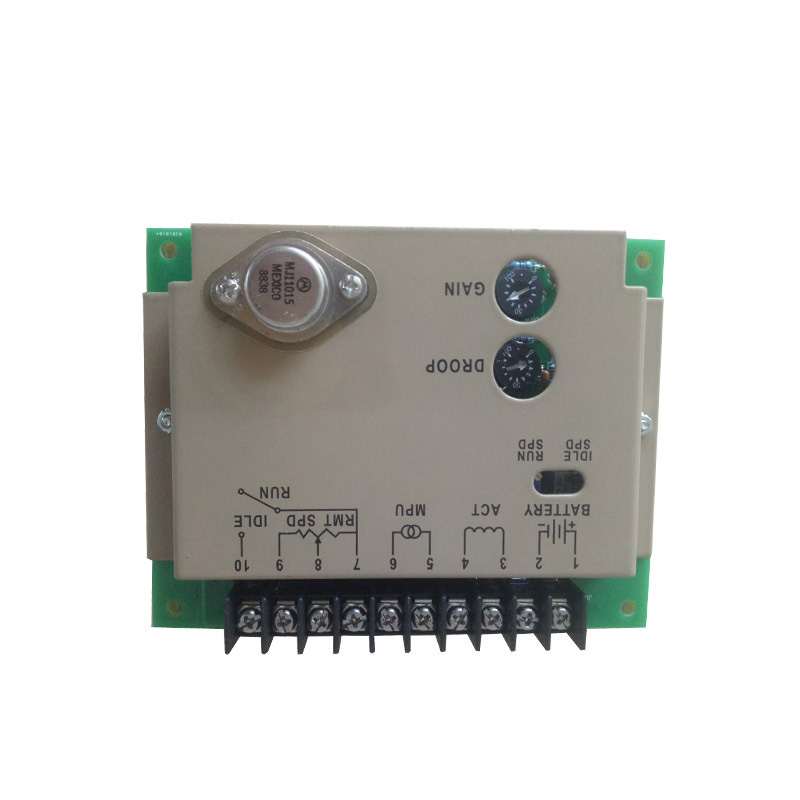

Governor Speed Control Board 4913988 Controller Generator Set Accessories DC24V Generator Speed Controller

3044195 Generator Speed Controller Input Supply：24 VDC ±20% Polarity：Negative Ground (Case Isolated) Power Consumption：40 MA Maximum Actuator Current：4.5 A continuous Speed Sensor Signal：2-120 Volts RMS Performance Isochronous Operation/Steady State Stability：±0.25% or better Speed Range/Governor：1K to 6.5K Hz continuous Speed Drift with Temperature：±1 Max Idle Regulation：260±20 Hz Droop Adj. Max.：400 Hz., ±75Hz. Per 1.0A change Speed Trim Range：±200 Hz with 1 ohm connected Remote Variable Speed Range：25 to 100% of rated speed Impedance：1m ohms Environmental Ambient Operating Temperature Range：-40 to +85 Deg. C Relative Humidity：Up to 95% All Surface Finishes： Fungus Proof and Corrosion Resitant Reliability Vibration：20 to 100 Hz. 500mm/sec
