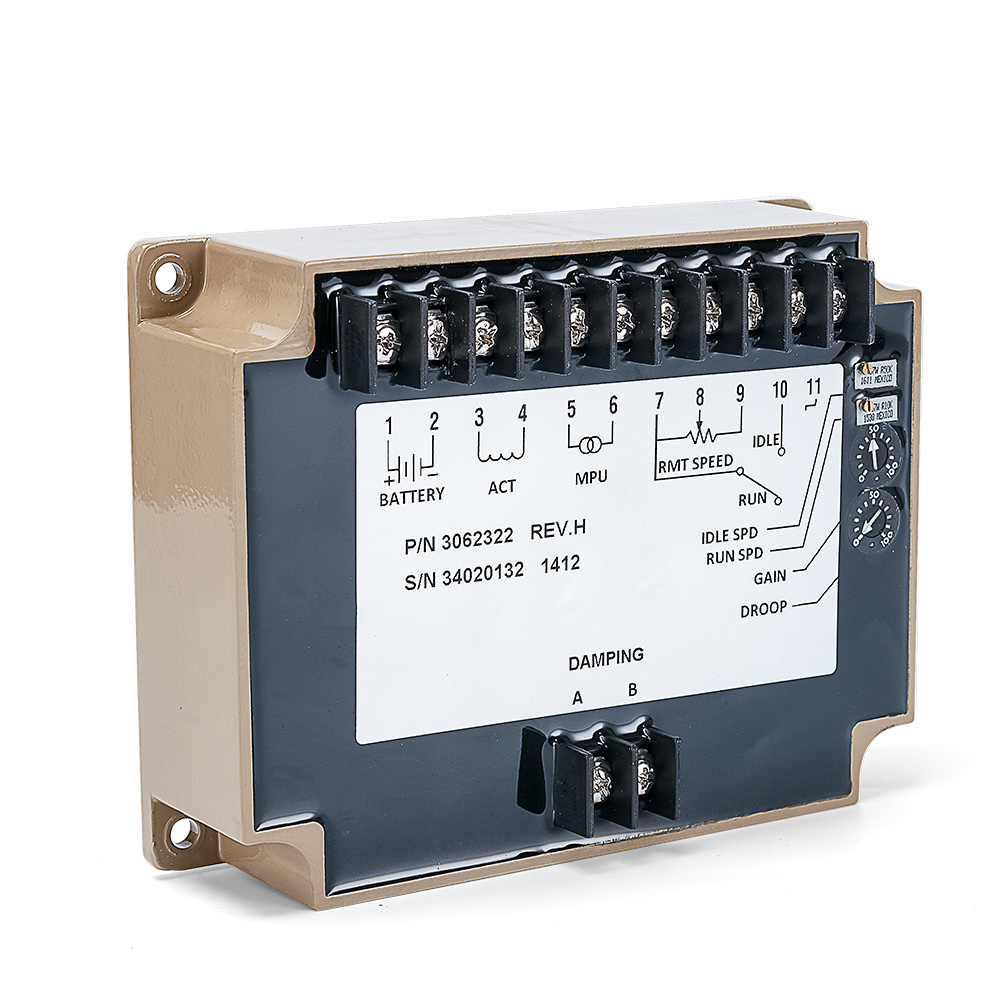

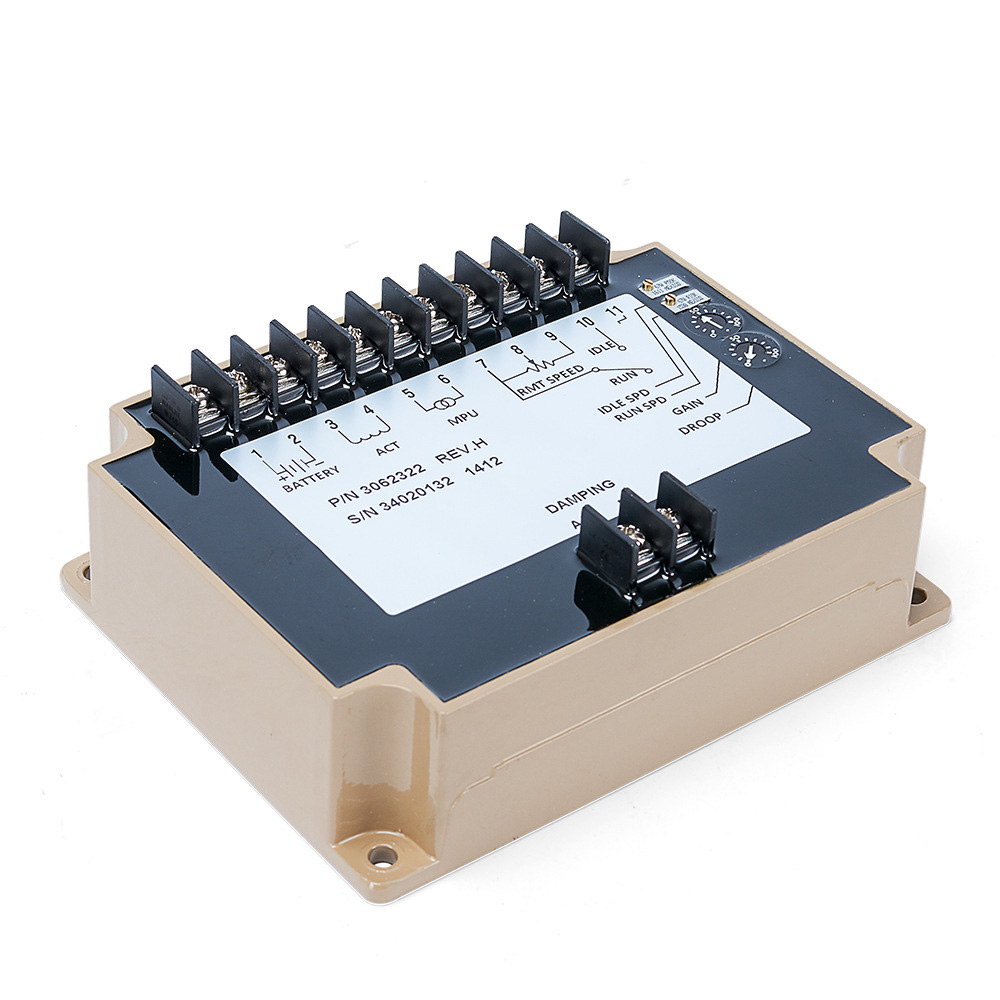

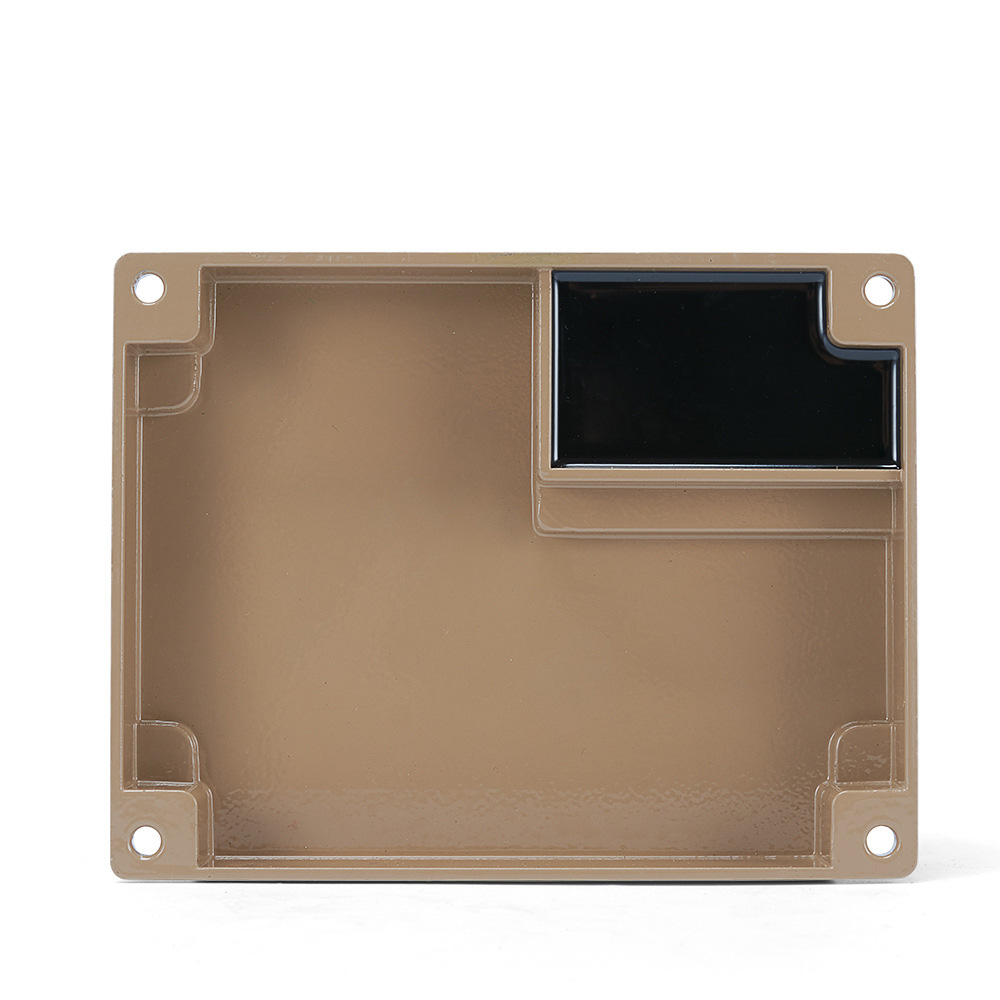

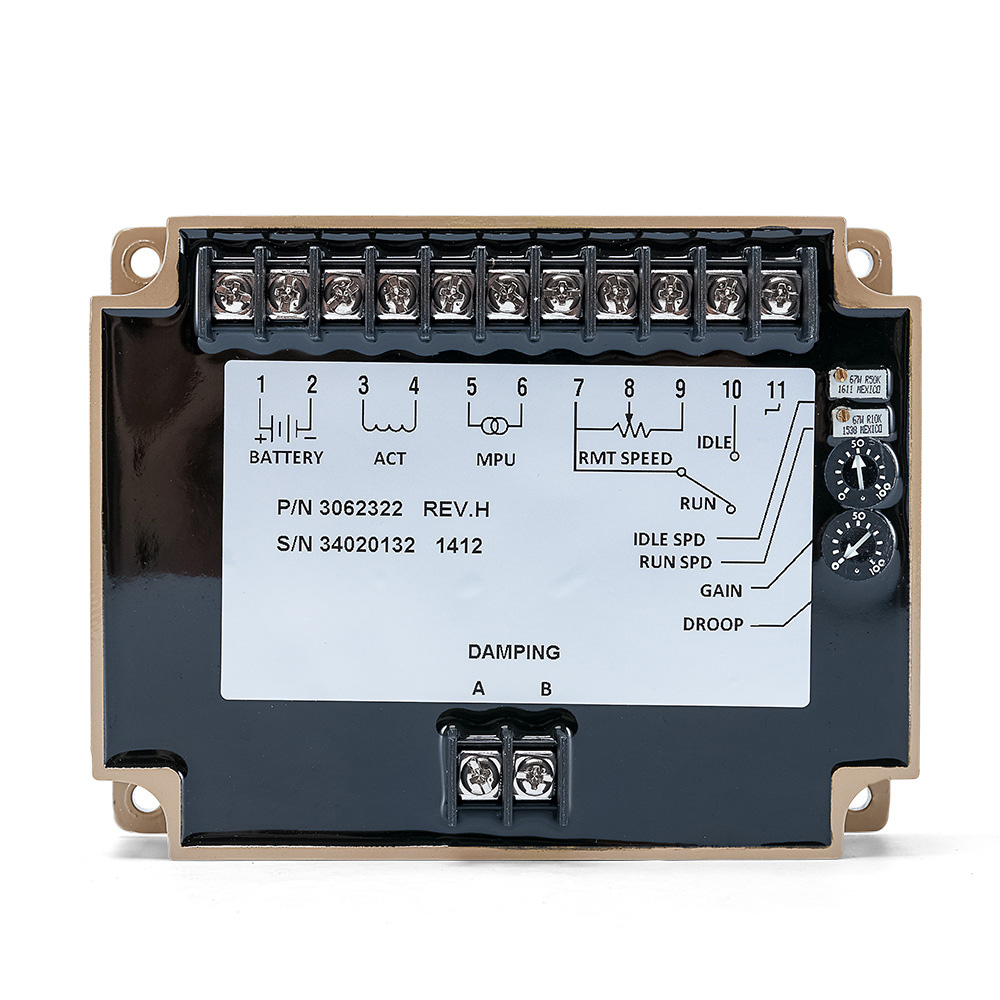

3062322 diesel engine control circuit board module genset parts
3062322 Engine Speed Controller Governor is rugged enough to be placed in a control cabinet or engine mounted encosure with other dedicated control equipment. If water, mist or condensation may come in contact with controller, it should be mounted certically. This will allow the fluid to drain away from the speed control unit.
Model Number: 3062322
RPM stability: Less than± 0 25%
Speed range: 1 KHz ~ 6.5 KHz
Thermal stability: max. 0. 7%
IDLE Regulation: 260 ± 20Hz
DROOP regulation: minimum 15Hz ± 6Hz / 1 amplifier
Maximum: 400Hz ± 75Hz / 1 Amp
External speed regulation: ± 200Hz (with 1 K ohm connected)
Auxiliary input sensitivity: 148Hz / 1 V., ± 10Hz
Impedance: 1M ohm
Environment:
Working temperature range: -40-85
Operating humidity range: maximum 95%
Average temperature: -55 ~ 92Celsius
Shocking: 20-100 HZ 500mm / sec.
input power supply
Voltage: 12 V or 24 V
Pole ground pole: negative pole
Power supply: 40 mA
Actuator continuous current: Minimum 1 A, maximum 4.5A
MPU signal: 2 ~ 120V RMS
