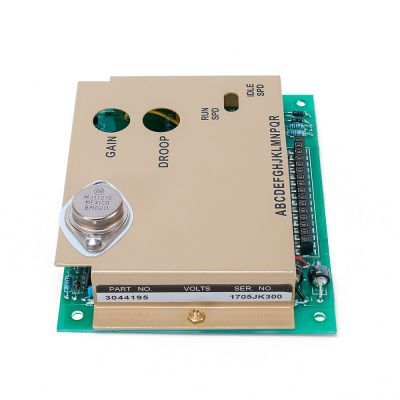

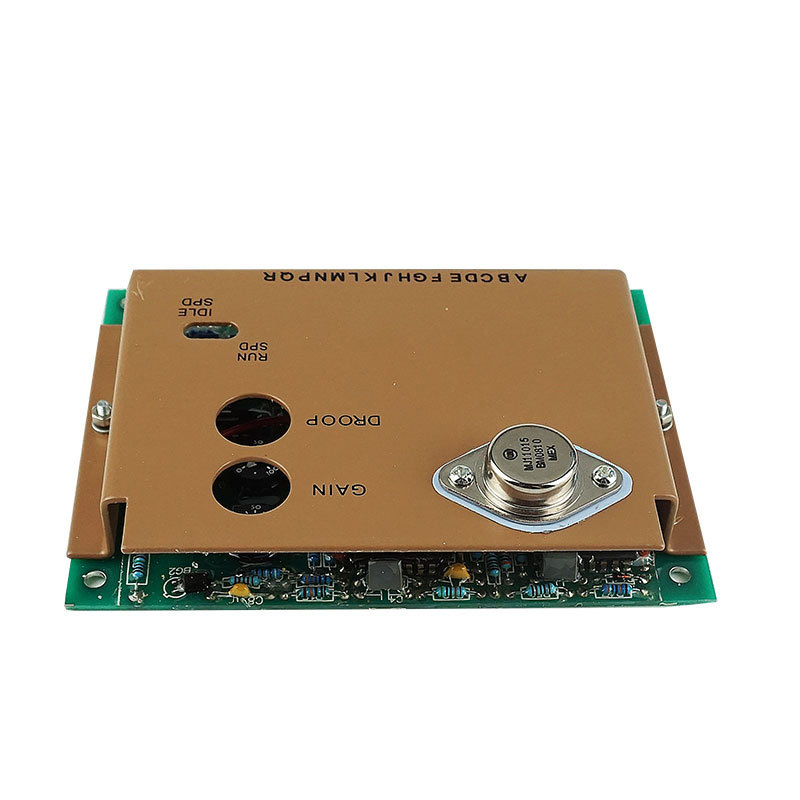

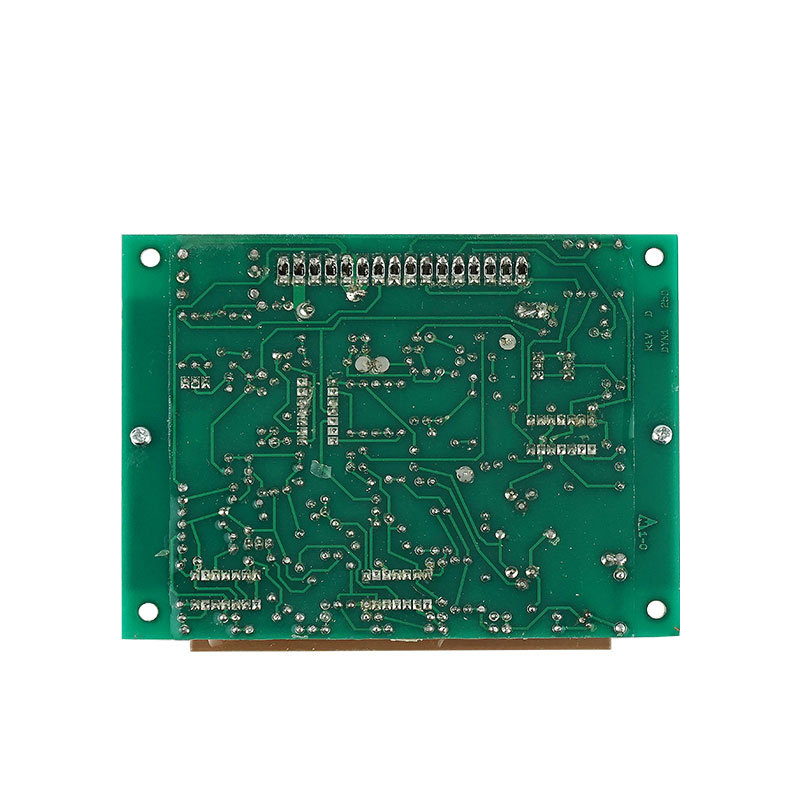

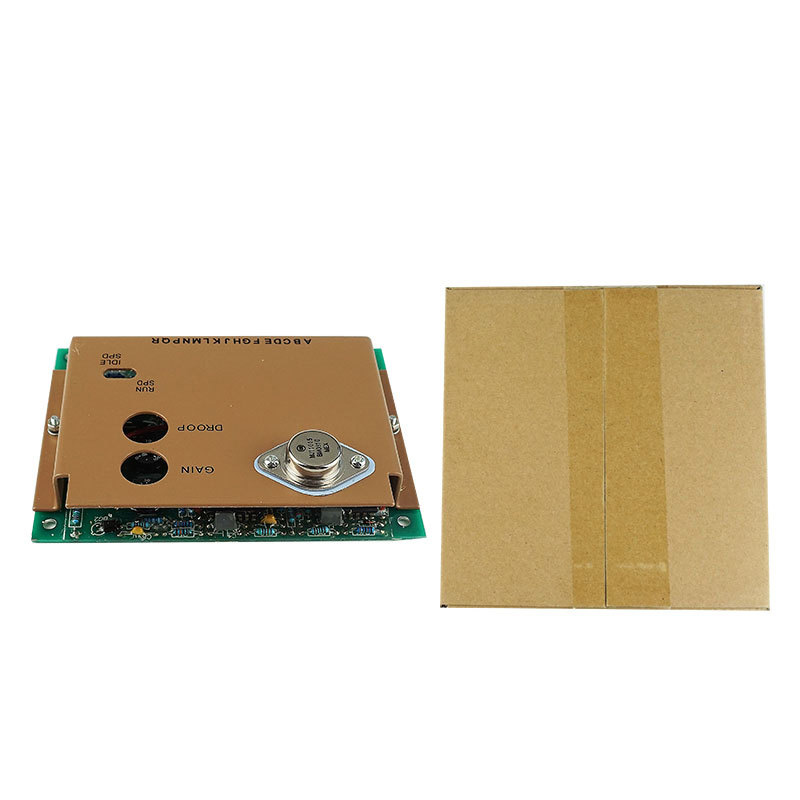

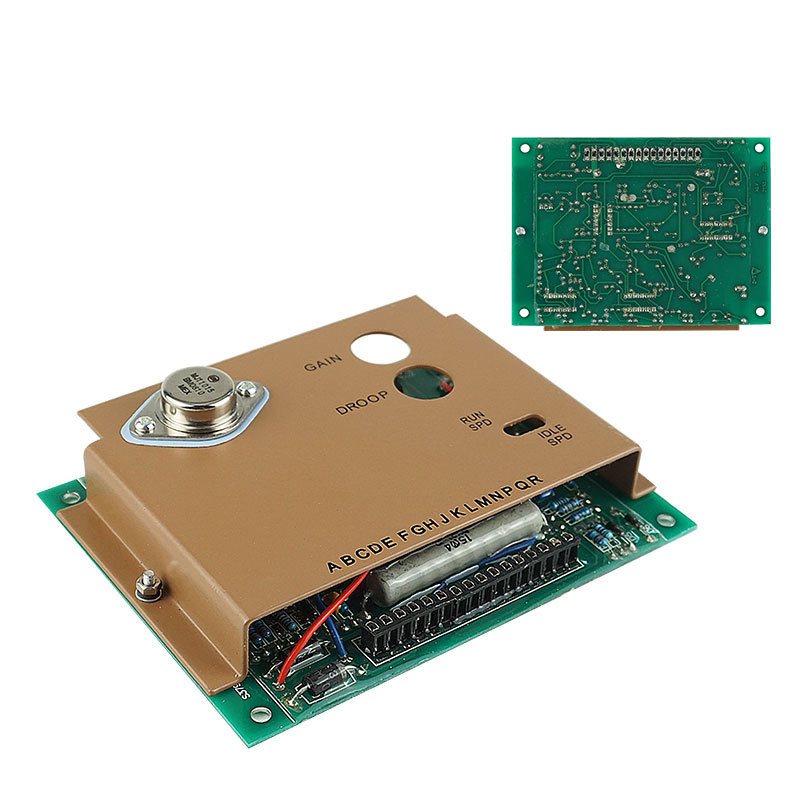

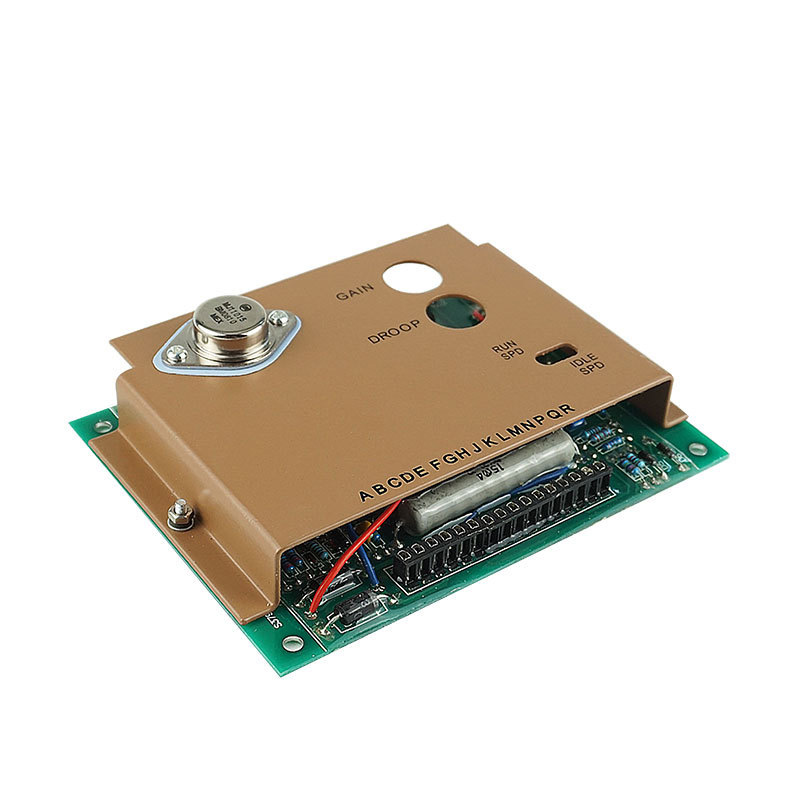

3062323 Engine Governor Diesel Generator Set Electric Speed Controller Board Brushless Genset Parts
Engine Speed Controller EFC 3062323 Governor For Generator is rugged enough to be placed in a control cabinet or engine mounted encosure with other dedicated control equipment. If water, mist or condensation may come in contact with controller, it should be mounted certically. This will allow the fluid to drain away from the speed control unit.
SPECIFICATION:
RPM Stability: <±0.25%
Speed Range: 1KHz ~ 6.5KHz
Thermal Stability: Max ±0.7%
IDLE Regulation: 260 ±20Hz
DROOP Regulation: Minimum 15Hz ±6Hz/ 1 Amp
Maximum: 400Hz ±75Hz/ 1 Amp
External Speed Regulation: ±200Hz (with 1 KΩ connected)
AUX Input Sensitivity: 148Hz / 1V., ±10Hz
Impedance: 1MΩ
Working Temp Range: -40 ~ 85 °C
ENVIRONMENT:
Working Humidity Range: Maximum 95%
Stocking Temp: -55 ~ 92 °C
Shocking: 20-100HZ 500mm/Sec.
INPUT POWER SUPPLY:
Voltage: 12V 24V
