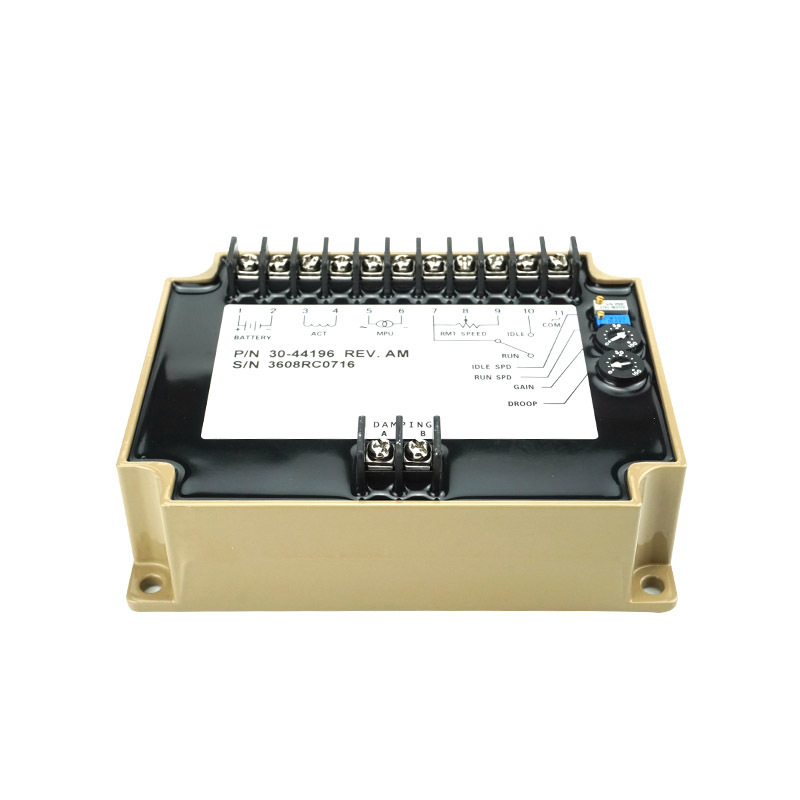

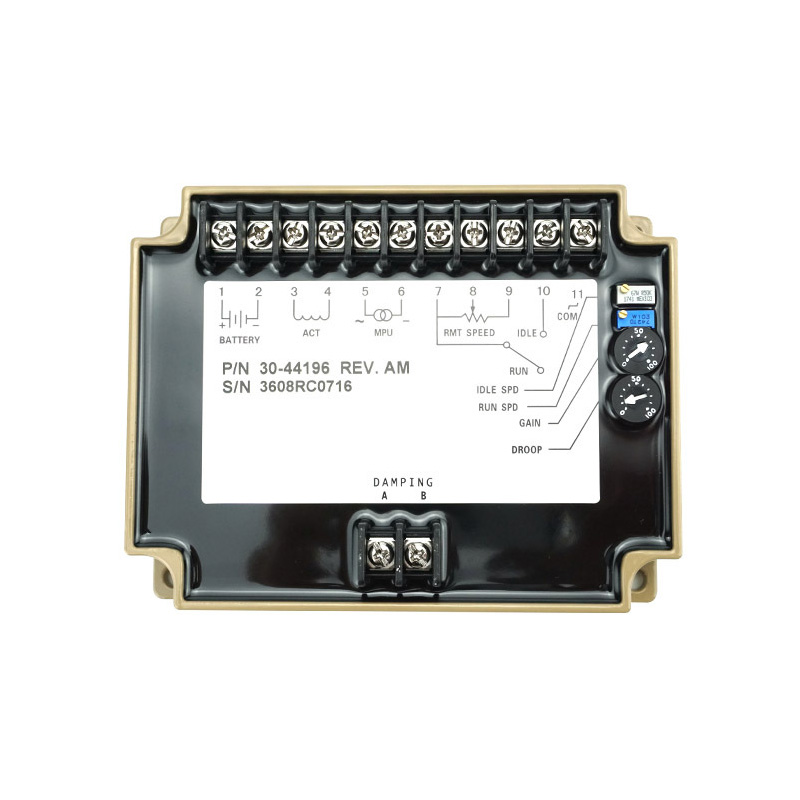

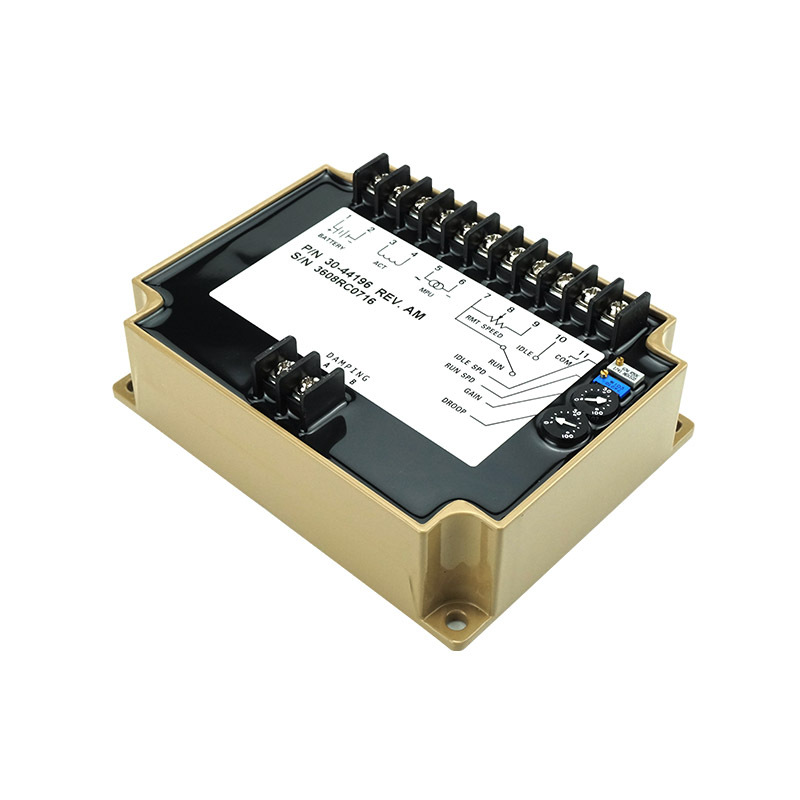

Genset Engine Parts Governor Control Unit 3044196 Generator Speed Controller Panel
Speed Governor Control Unit EFC 3044196 For Below 500kw Generator is rugged enough to be placed in a control cabinet or engine mounted encosure with other dedicated control equipment. If water, mist or condensation may come in contact with controller, it should be mounted certically. This will allow the fluid to drain away from the speed control unit.
Model Number: 3044196
name: Engine Governor
appliction: diesel generator set
RPM Stability: Less than +/-0.25%
Speed Range: 1KHz ~ 6.5KHz
Thermal stability: Max +/- 0.7%
IDLE Regulation: 260 +/-20Hz
DROOP Regulation: Minimum 15Hz +/- 6Hz/ 1 Amp
Maximum: 400Hz ±75Hz/ 1 Amp
External Speed Regulation: +/-200Hz (with 1 KΩ connected)
AUX Input Sensitivity: 148Hz / 1V., +/-10Hz
Impedance: 1MΩ
Working Temp Range: -40 ~ 85 Celsius
ENVIRONMENT:
Working Humidity Range: Maximum 95%
Stocking Temp: -55 ~ 92 Celsius
Shocking: 20-100HZ 500mm/Sec.
INPUT POWER SUPPLY
Voltage: 24V
Grounding Pole: Negative pole
Power Supply: 40mA
Actuator Continuous Current: Minimum 1A, Maximum 4.5A
MPU
Signal: 2 ~ 120V RMS
colour:black
Material:metal
