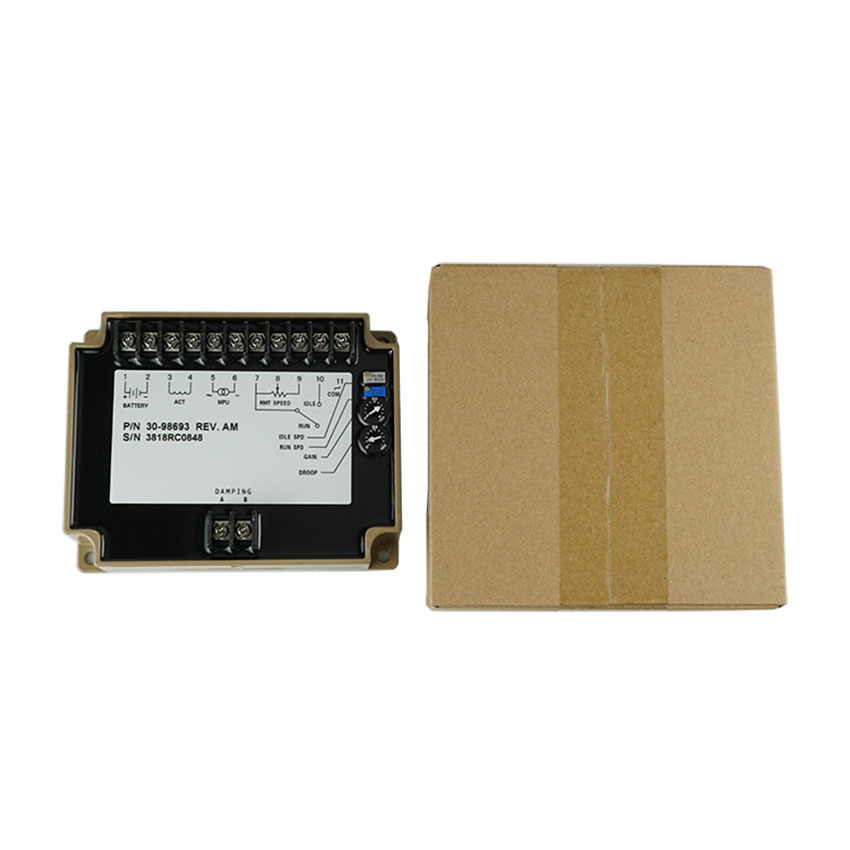

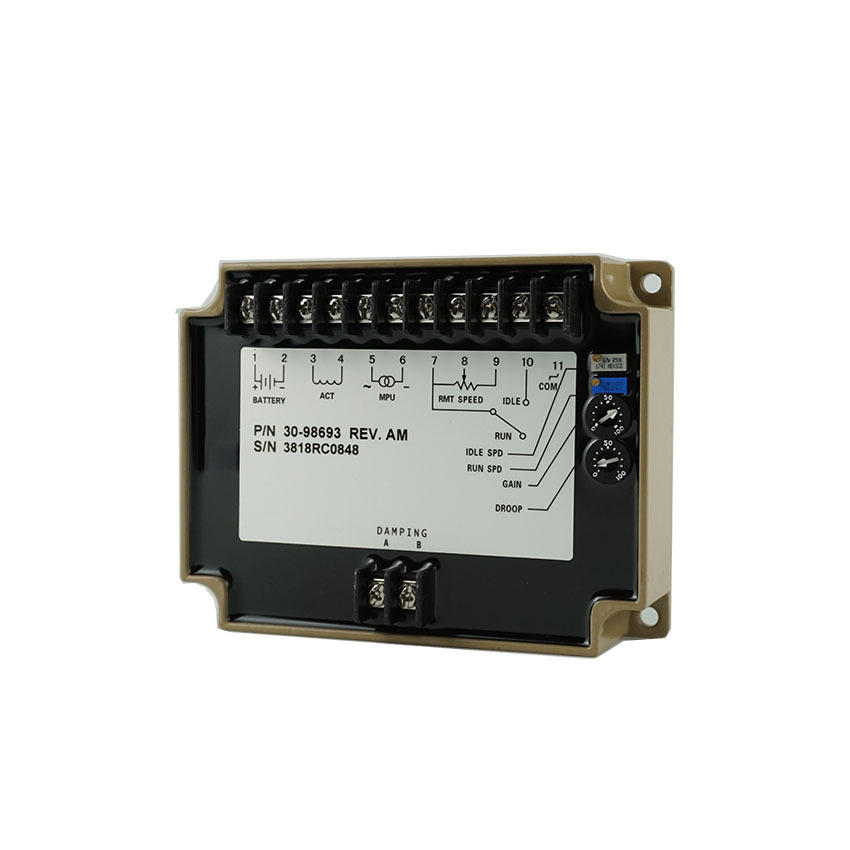

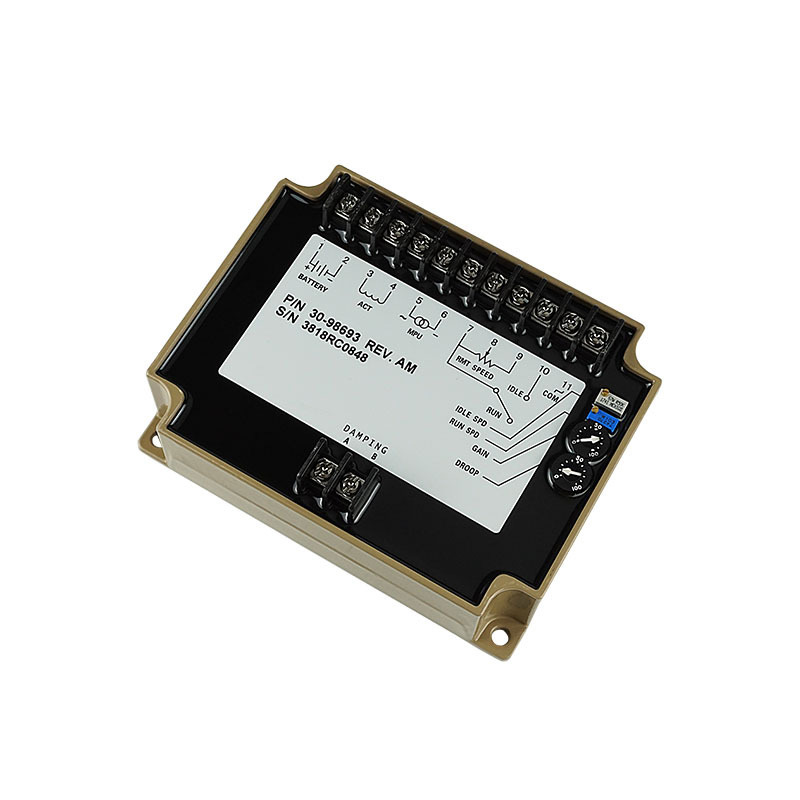

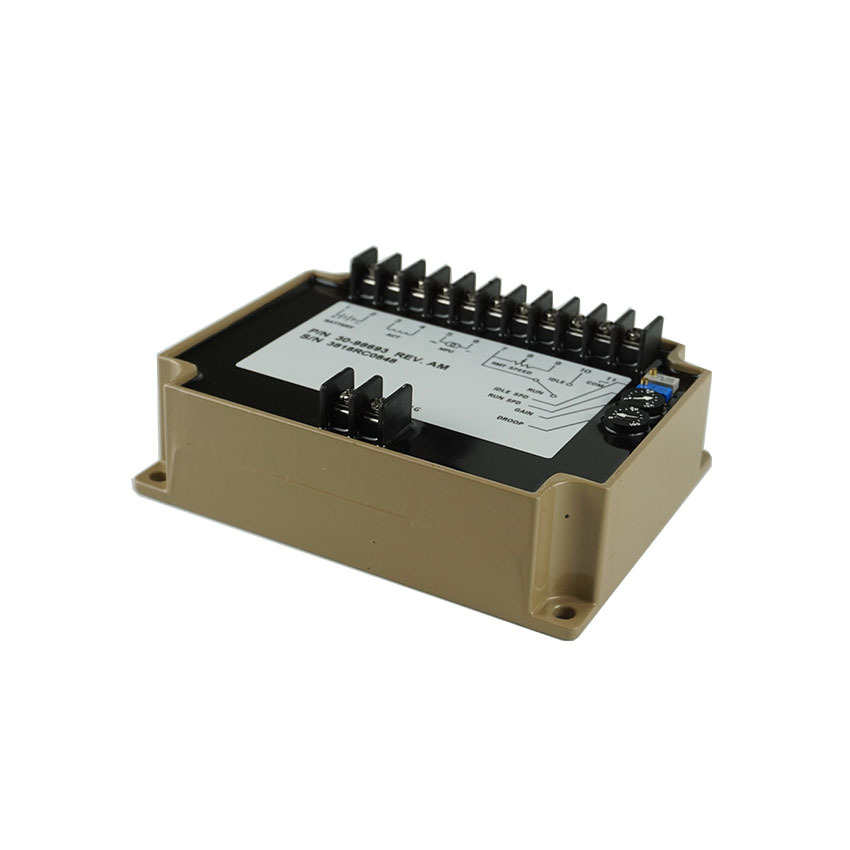

Speed Controller 3098693 Speed Governor for Diesel Generator
Governor Speed Controller 3098693 For Over 500KW Generator set is rugged enough to be placed in a control cabinet or engine mounted encosure with other dedicated control equipment. If water, mist or condensation may come in contact with controller, it should be mounted certically. This will allow the fluid to drain away from the speed control unit.
Features Specifications:
1)General Description
EFC 3098693 speed control unit is an engine speed controller designed by all electronic device for CUMMINS actuator, It can fast and precise response to transient load changes. It has a wide speed control range. For these controllers, separate circuits allow adjustments of proportional, integral and derivative values. These parameters all work together to provide a control that results in fast and stable engine response to load changes while maintaining precise speed regulation of diesel.
2)Specifications & Performance
|
Operating Voltage: |
12 or 24 V |
|
Steady State Speed Band: |
±0.25% |
|
Ambient Operating Temperature: |
-40°c to +85°c |
|
Temperature Stability: |
Better than ±0.5% over temperatures of -40°c to +125°c |
|
Mechanical Vibration: Withstands the following vibration without failure or degraded performance: |
0.06 inch double amplitude at 5 to 18 Hz; |
|
1 G at 18 to 30 Hz |
|
|
Connections: |
Terminal strip |
|

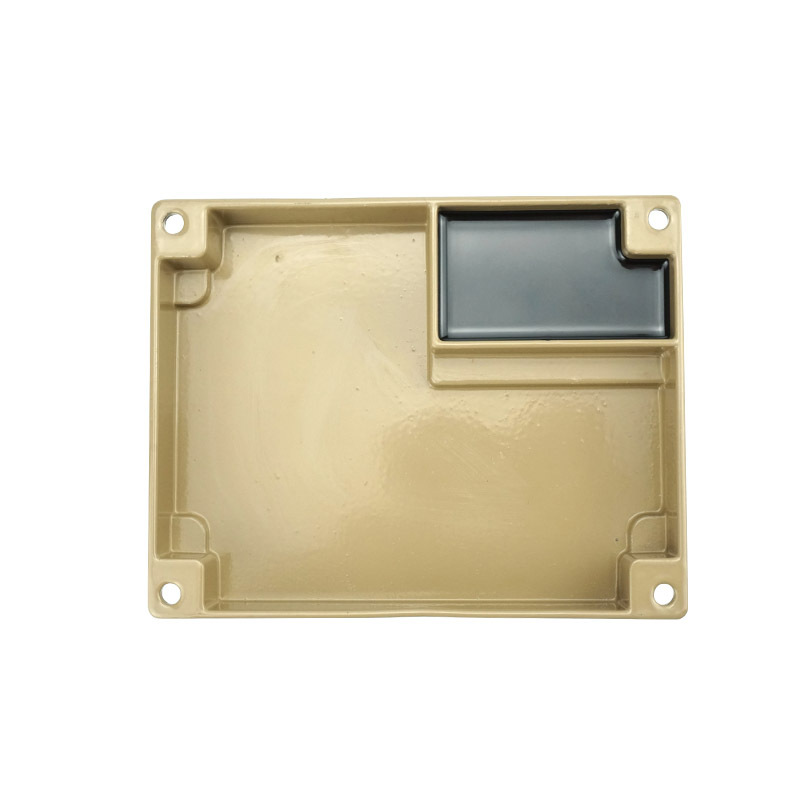

Enclosure: |
Die cast aluminium |
|
Weight: |
635 grams (1.4 lbs.) |
|
Magnetic Pickup Frequency Range: |
2500 - 5000 Hz |
|
Output Signal: |
PWM current to 6A at max. |
|
Actuator Compatibility: |
EFC 3408326, DYNA7000 |
