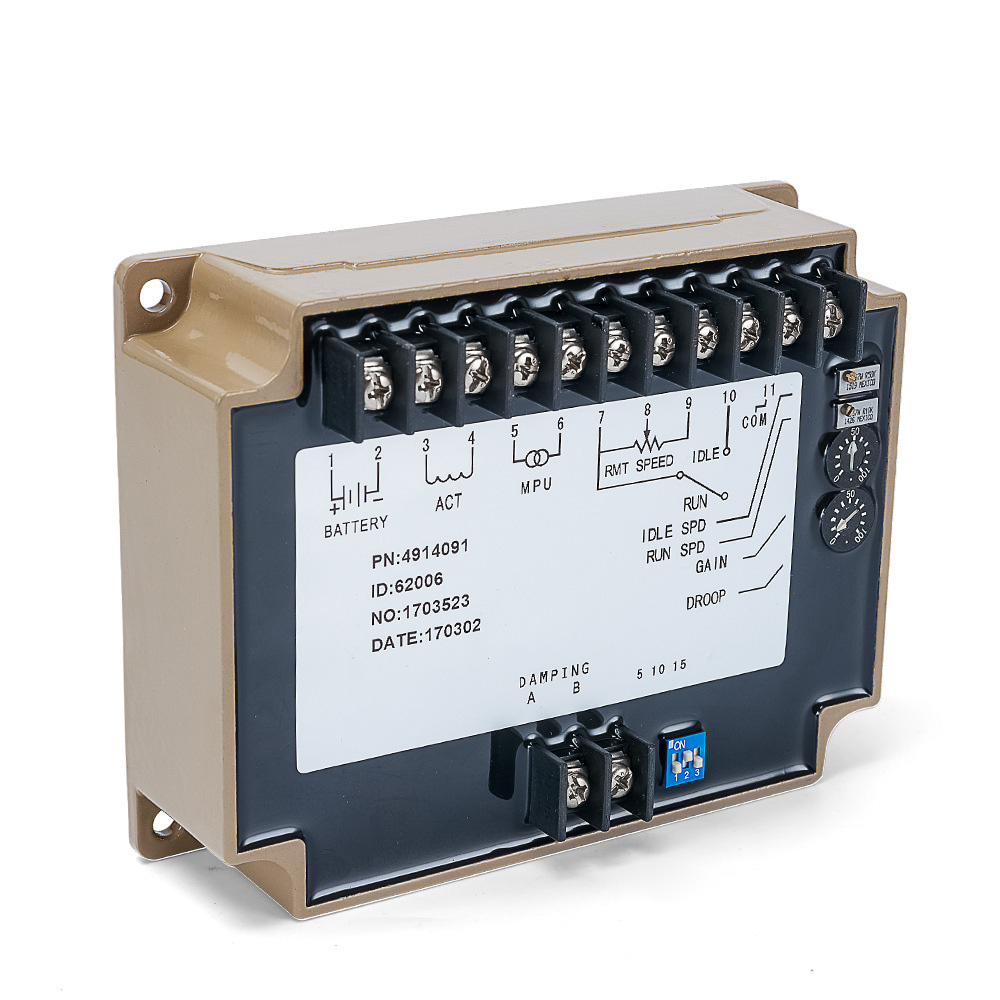

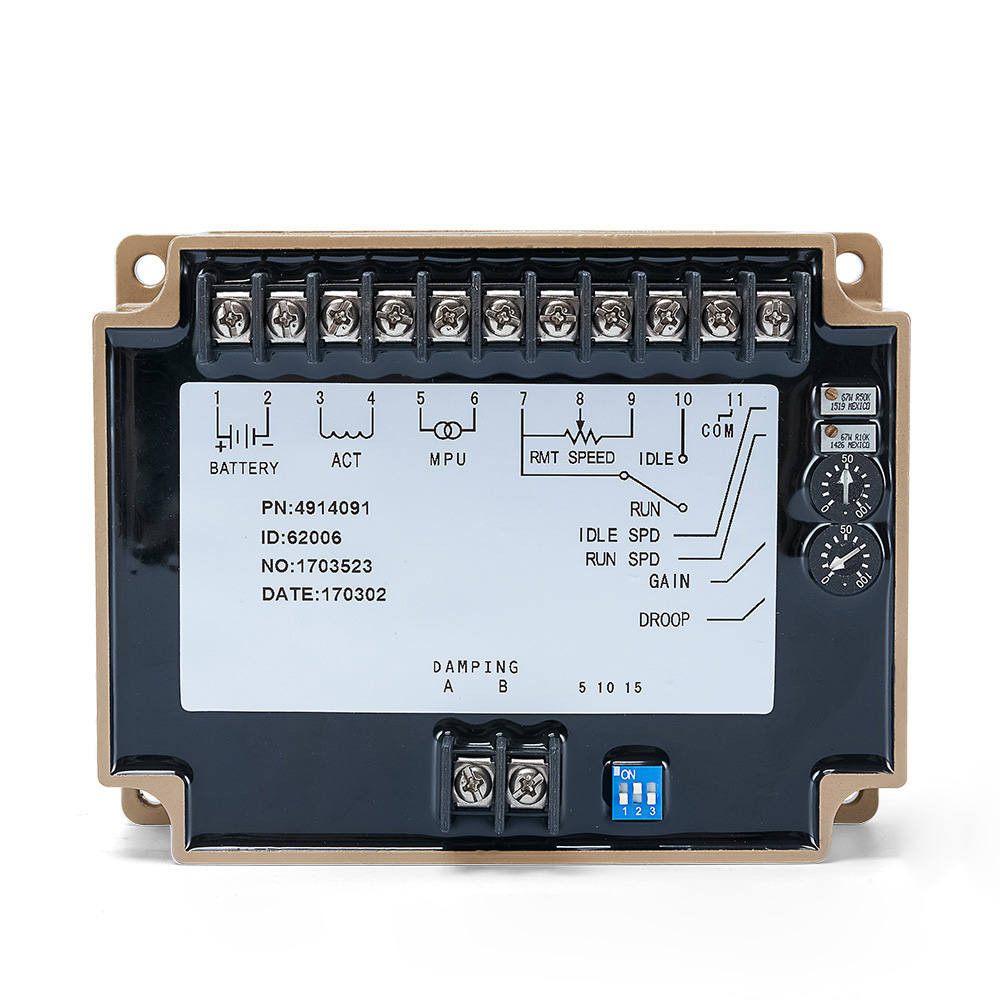

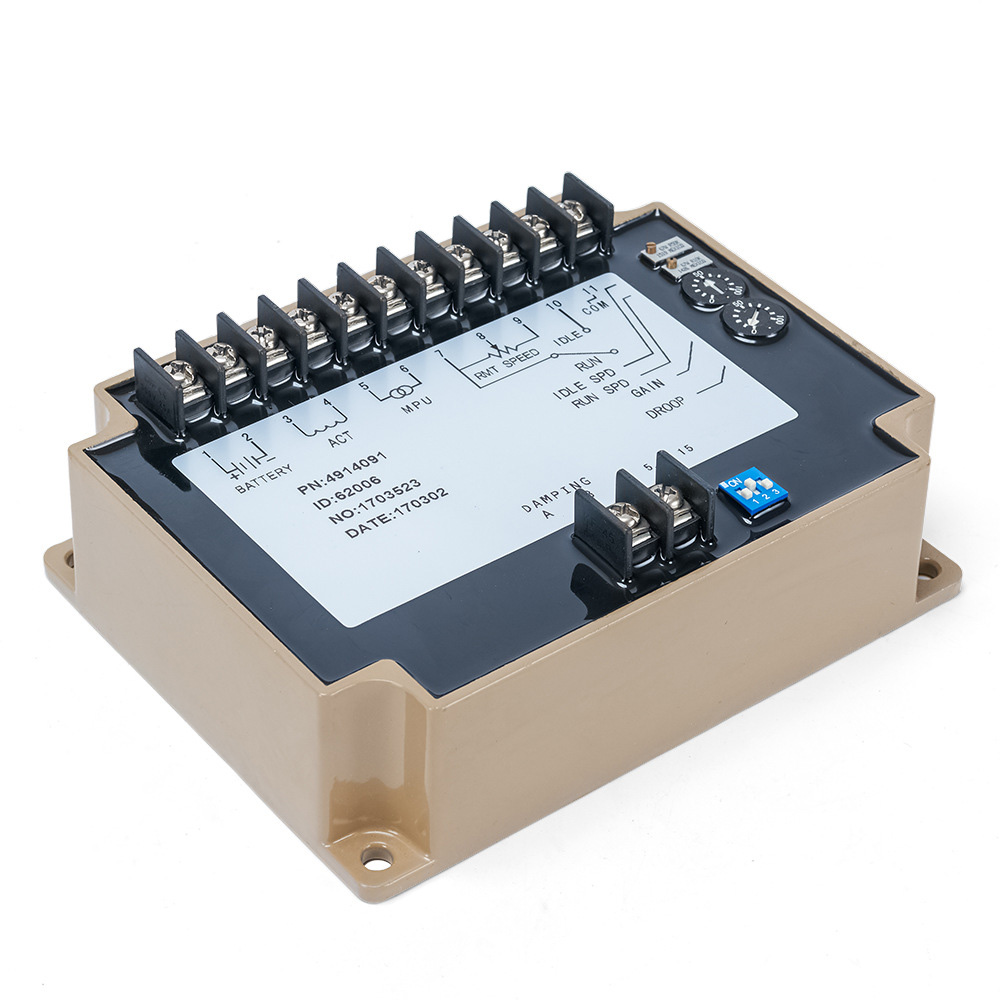

4914091 Diesel Generator Speed Control Unit Engine Speed Controller Governor
Product ID : 4914091
Product Tags :
Generator Speed GovernorGenset Generator Engine Speed Governor Control Unit Controller
Product Attributes :
Intelligent regulation Speed Controller 4914091 For Generator is rugged enough to be placed in a control cabinet or engine mounted encosure with other dedicated control equipment. If water, mist or condensation may come in contact with controller, it should be mounted certically.
4914090 is applicable to the generator set with PT pump under 350kW
4914091 is suitable for 350kw-1000kw generator set with PT pump
Product Description
RPM Stability:<±0.25% Speed Range:1KHz ~ 6.5KHz Thermal Stability: Max ±0.7% IDLE Regulation:260 ±20Hz DROOP Regulation:Minimum 15Hz ±6Hz/ 1 Amp Maximum: 400Hz ±75Hz/ 1 Amp External Speed Regulation:±200Hz (with 1 KΩ connected) AUX Input Sensitivity:148Hz / 1V., ±10Hz Impedance:1MΩ ENVIRONMENT: Working Humidity Range:Maximum 95% Environment Temprature:-15 ~ 55 °C Shocking:25HZ 2mm INPUT POWER SUPPLY: Voltage: 12 or 24V DC Grounding Pole:Negative pole Power Supply:Negative pole Actuator Continuous Current: Maximum 2.5A insulating strength:≥500MΩ
