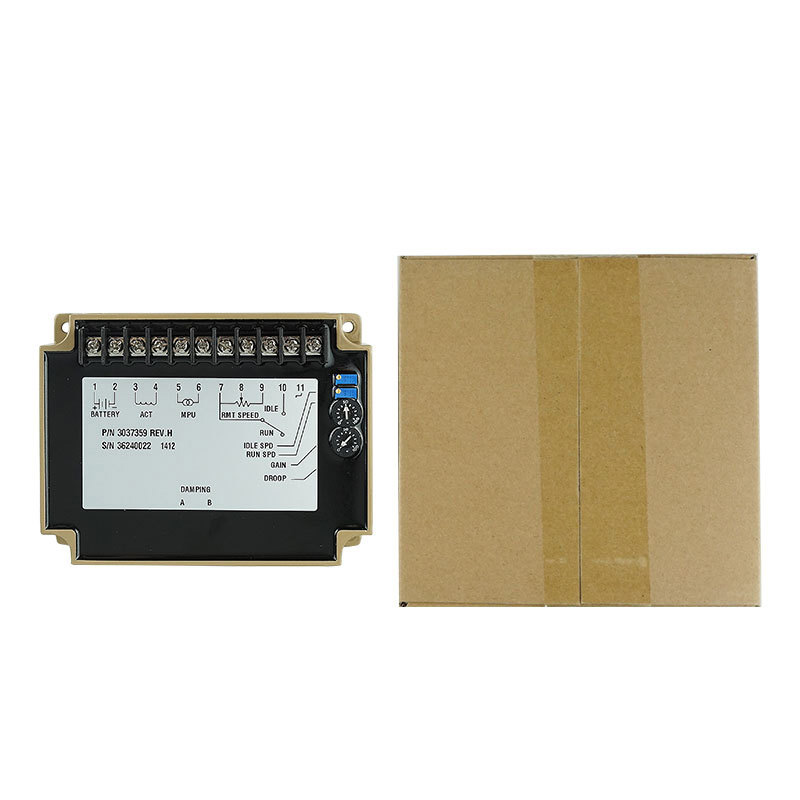

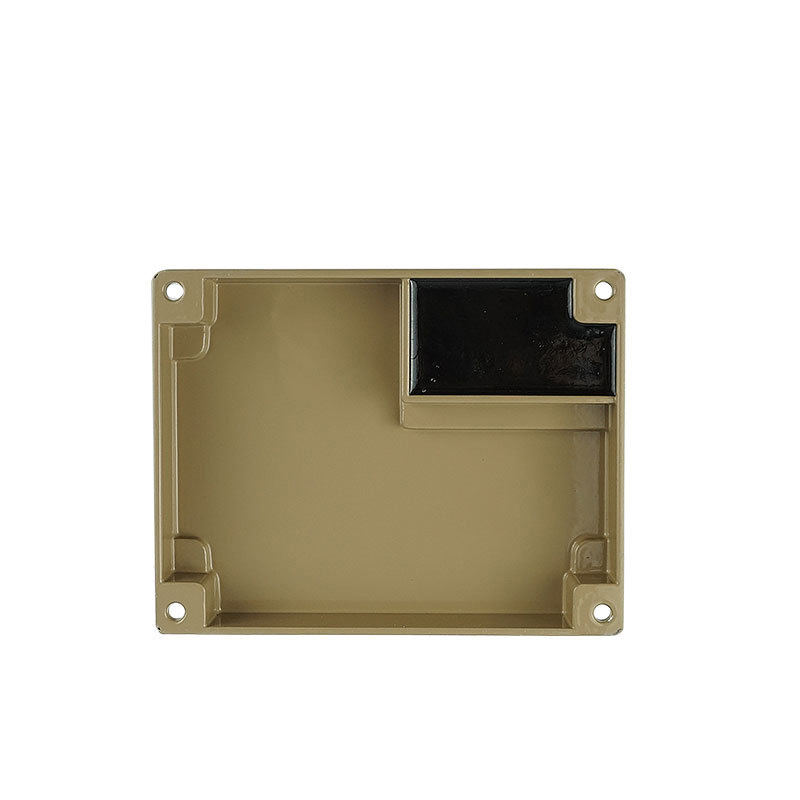

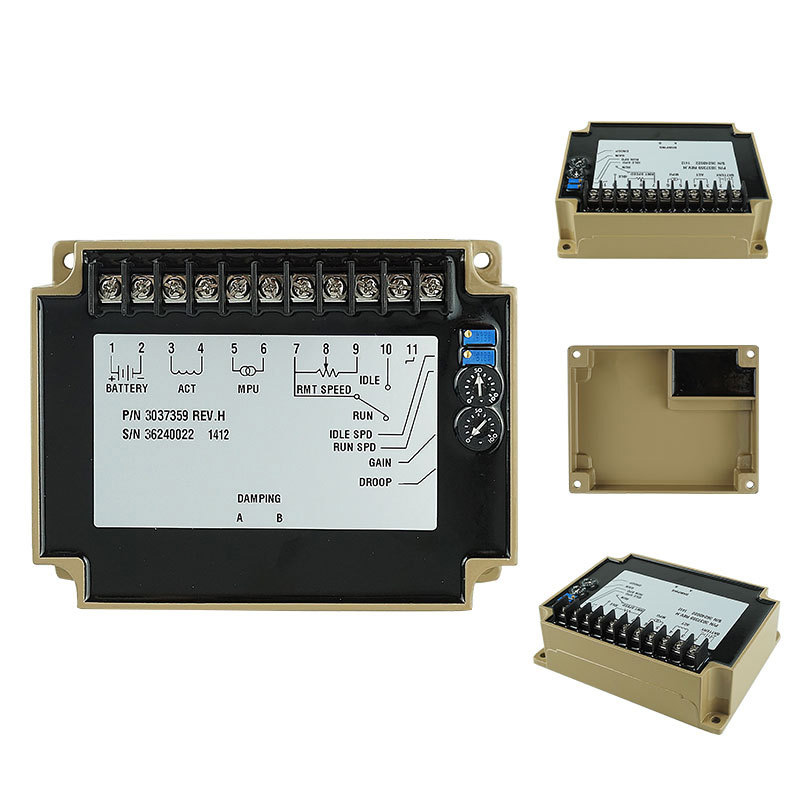

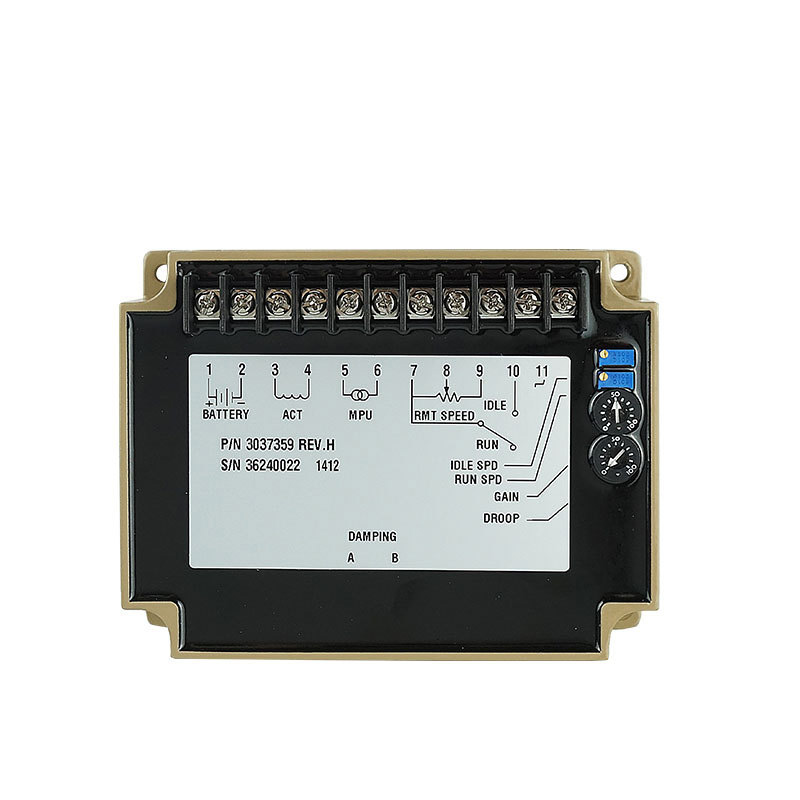

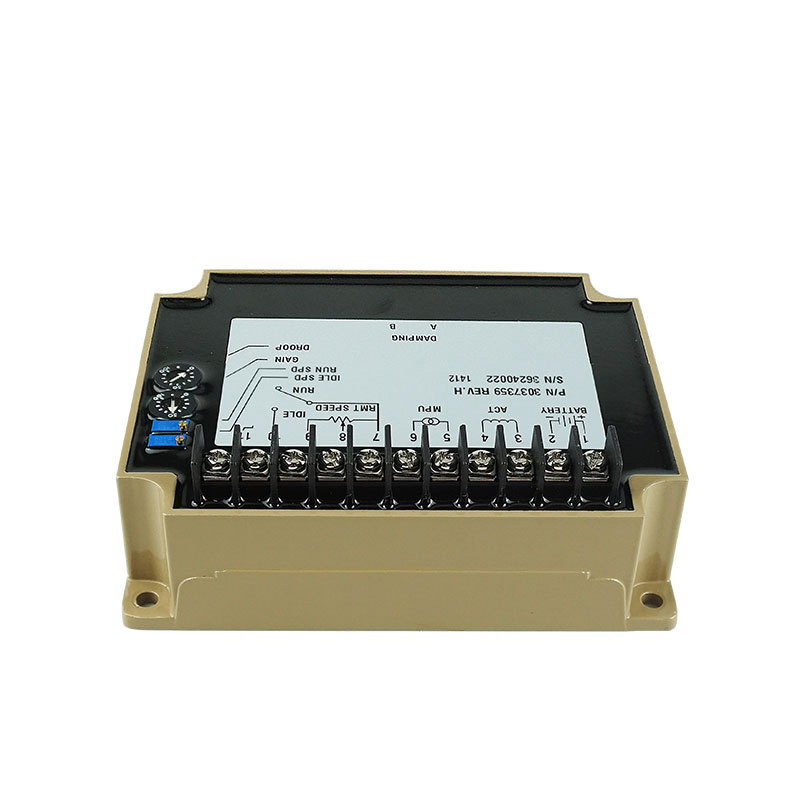

3037359 Diesel Generator Speed Control Unit Engine Governor Controller
The 3037359 Diesel engine electronic speed governor control is rugged enough to be placed in a control cabinet or engine mounted encosure with other dedicated control equipment. If water, mist or condensation may come in contact with controller, it should be mounted certically. This will allow the fluid to drain away from the speed control unit.
SPECIFICATION RPM Stability：<±0.25% Speed Range：1KHz ~ 6.5KHz Thermal Stability：Max ±0.7% IDLE Regulation：260 ±20Hz DROOP Regulation： Minimum 15Hz ±6Hz/ 1 Amp Maximum: 400Hz ±75Hz/ 1 Amp External Speed Regulation ：±200Hz (with 1 KΩ connected) AUX Input Sensitivity ：148Hz / 1V., ±10Hz Impedance ：1MΩ Working Temp Range ：-40 ~ 85 °C ENVIRONMENT Working Humidity Range ：Maximum 95% Stocking Temp ：-55 ~ 92 °C Shocking：20-100HZ 500mm/Sec. INPUT POWER SUPPLY Voltage ：24V Grounding Pole ：Negative pole Power Supply：40mA Actuator Continuous Current：Minimum 1A, Maximum 4.5A MPU Signal：2 ~ 120V RMS
