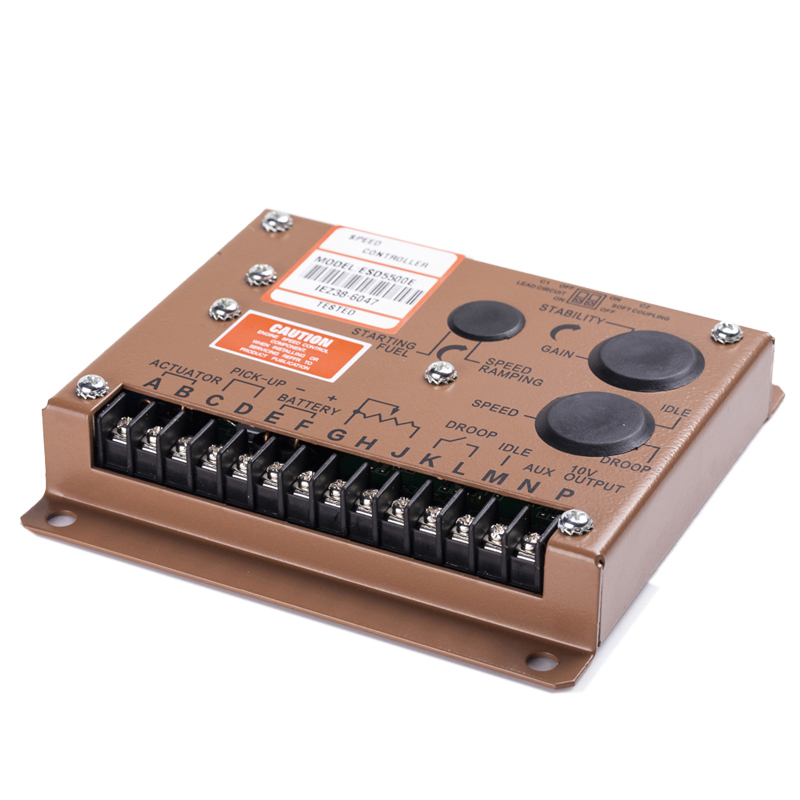

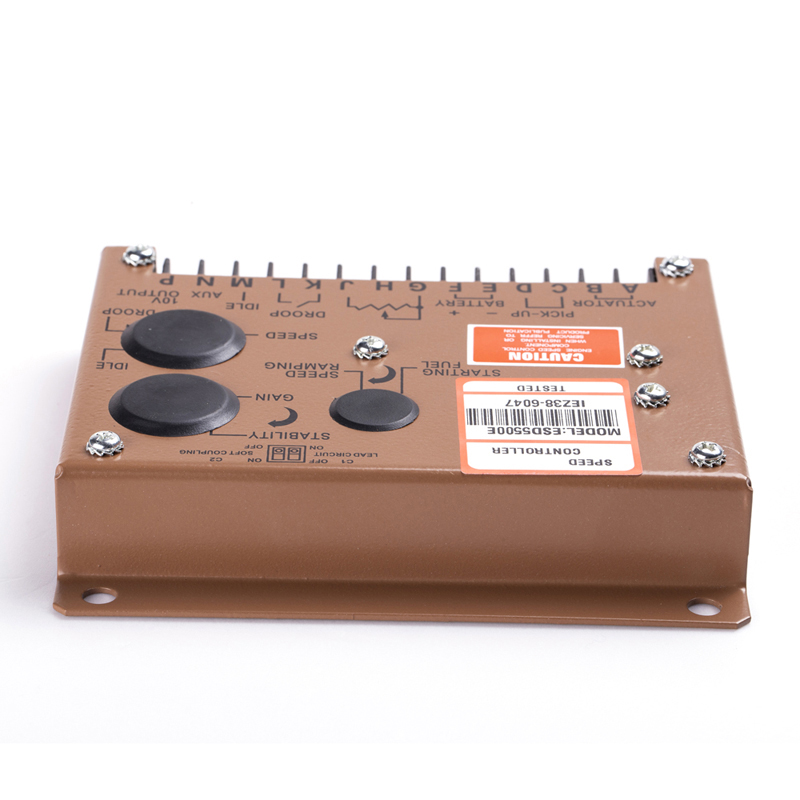

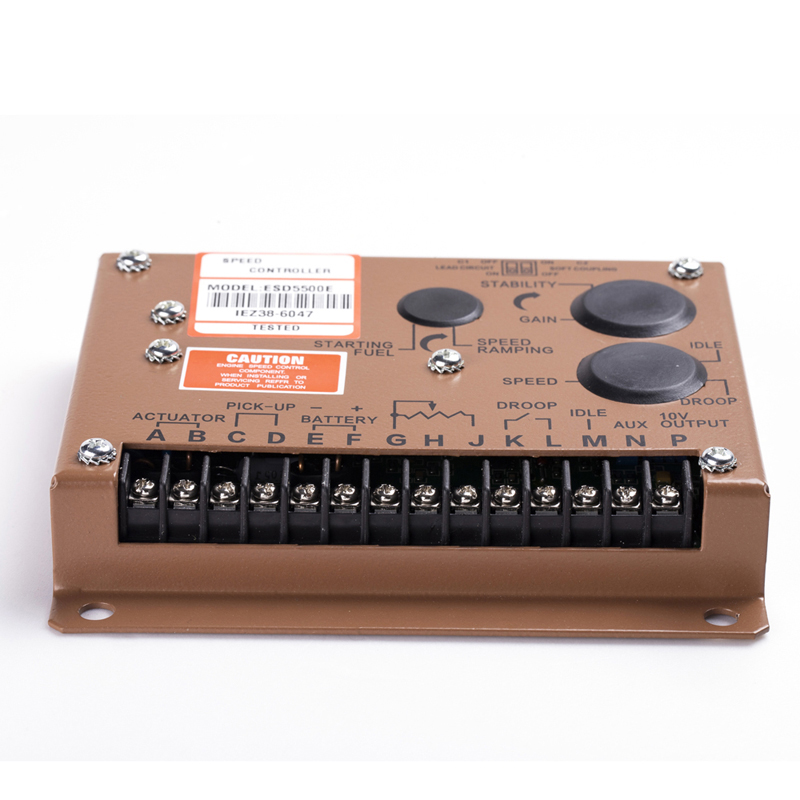

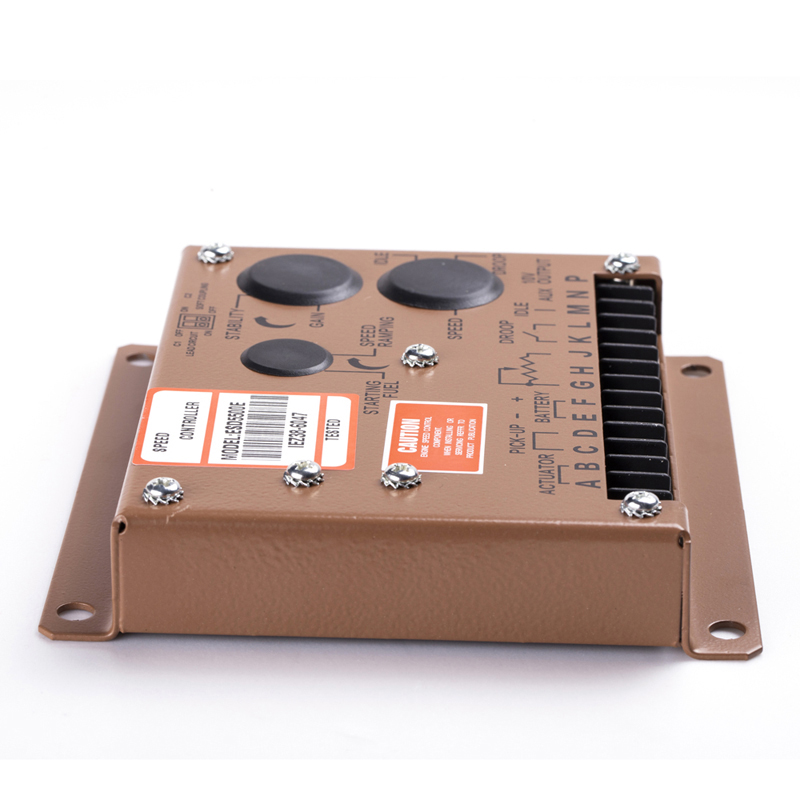

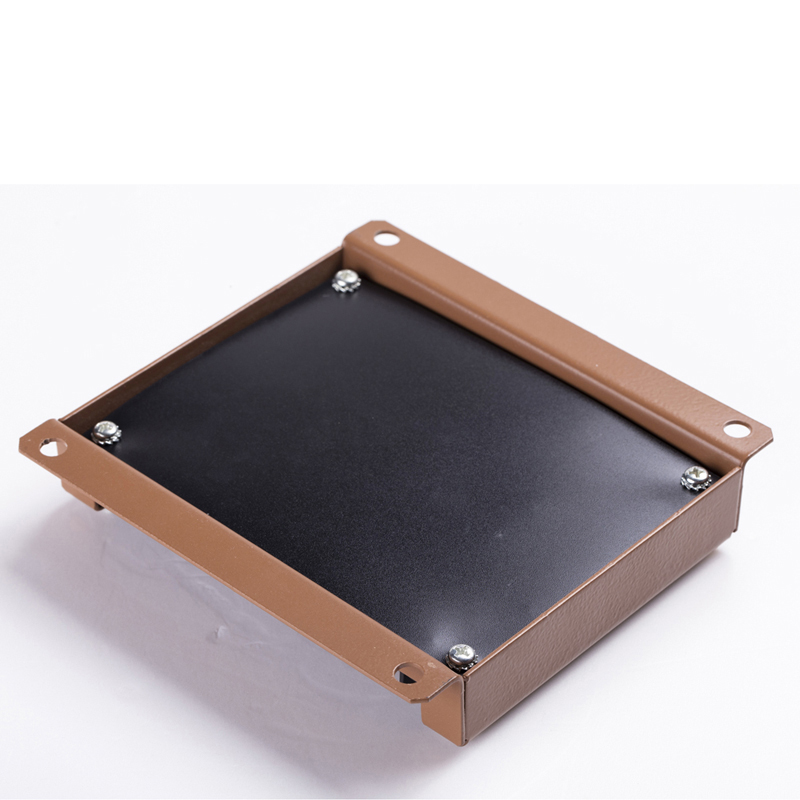

Diesel Engine Speed Governor ESD5500E Controller 5500E
Product ID : ESD5500E
Product Tags :
Generator Speed GovernorGenset Generator Engine Speed Governor Control Unit Controller
Product Attributes :
The ESD5500E Series speed control unit is an all- electronic device designed to control engine speed with fast and precise response to transient load changes. This closed loop control, when connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode. It is designed for high reliability and built ruggedly to withstand the engine environment.
Product Description
| Input | Supply | 12 or 24 VDC Battery System (Transient and Reverse Voltage) |
| Polarity | Negative Ground (Case Isolated) | |
| Power Consumption | 50 ma continuous plus actuator current | |
| Actuator Current Range @ 25 Deg. C - (Inductive Load) |
Min.2.5 Amps; Max. 10Amps continuous | |
| Speed Sensor Signal | 0.5-120 Volts RMS | |
| Performance | Isochronous Operation/Steady State Stability |
±0.25% or better |
| Speed Range/Governor | 1K to 7.5K Hz continuous | |
| Speed Drift with Temperature | ±1 Max | |
| Idle Adjust CW | 60% of set speed | |
| Idle Adjust CCW | Less than 1200 Hz. | |
| Droop Range | 1-5% regulation | |
| Droop Adj. Max. (K-L Jumpered) | 400 Hz., ±75Hz. Per 1.0A change | |
| Droop Adj. Min. (K-L Jumpered) | 15Hz., ±6Hz. Per 1.0A change | |
| Speed Trim Range | ±200 Hz | |
| Remote Variable Speed Range | 500 - 7.5 Hz. Or any part there of | |
| Terminal Sensitivity J | 100 Hz., ± 15Hz / Volt @ 5.0 K Impedance | |
| Terminal Sensitivity L | 735 Hz., ±60 Hz / Volt @ 65 K Impedance | |
| Terminal Sensitivity N | 148 Hz., ±10 Hz / Volt @ 1 Meg. Impedance | |
| Terminal Sensitivity P | 10 VDC Supply @ 20 ma Max | |
| Environmental | Ambient Operating Temperature Range |
-40 to +85 Deg. C |
| Relative Humidity | Up to 95% | |
| All Surface Finishes | Fungus Proof and Corrosion Resitant | |
| Reliability | Vibration | 1G at 20 to 100 Hz. |
| Testing | 100% Functionally Tested | |
| Physical | Dimensions | See outline (FIGURE 1) |
| Weigh1 | 1.2 lbs.(545 grams) | |
| Mounting | Any position, Vertical Preferred |
