Generator Speed Control Unit ESD5550E Engine Electric Speed Governor Diesel Genset Spare Parts

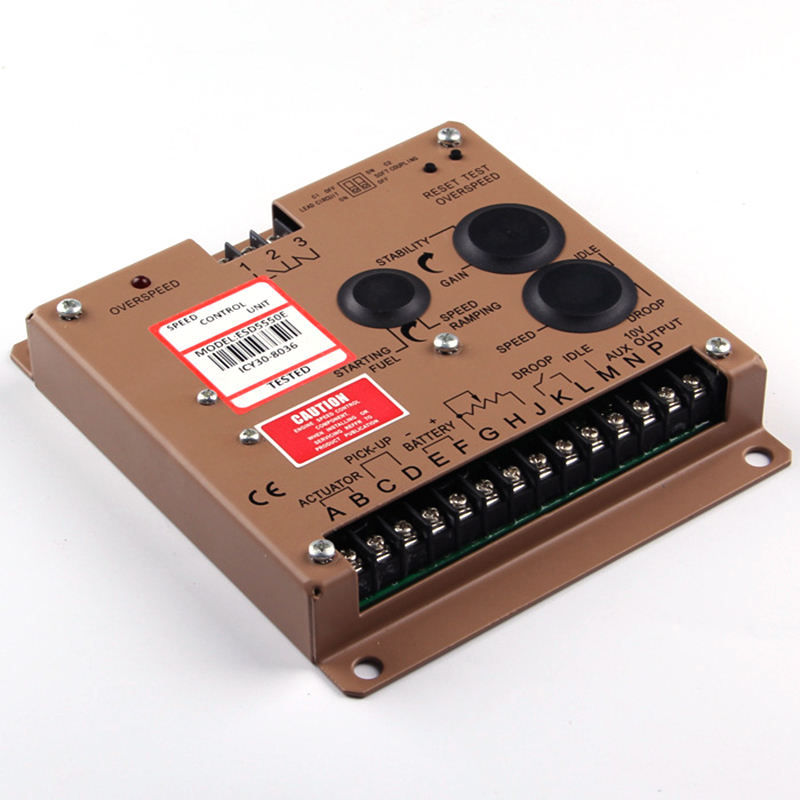

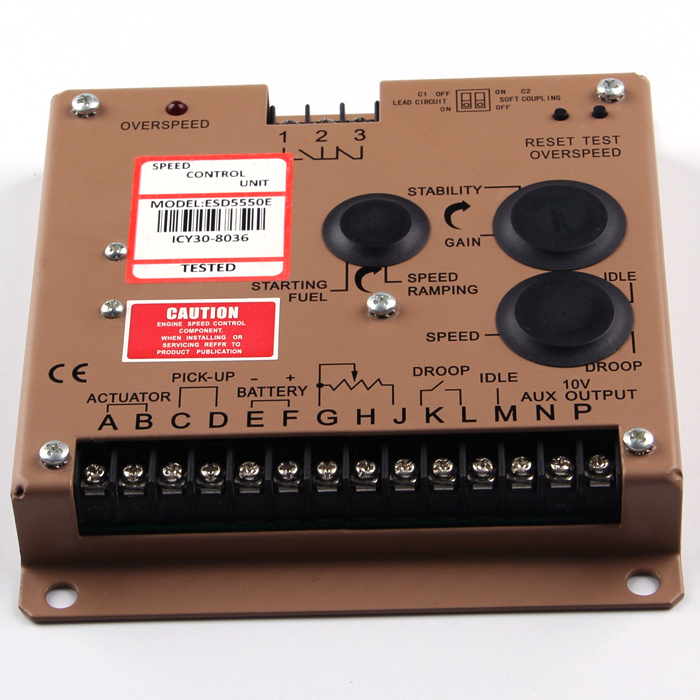

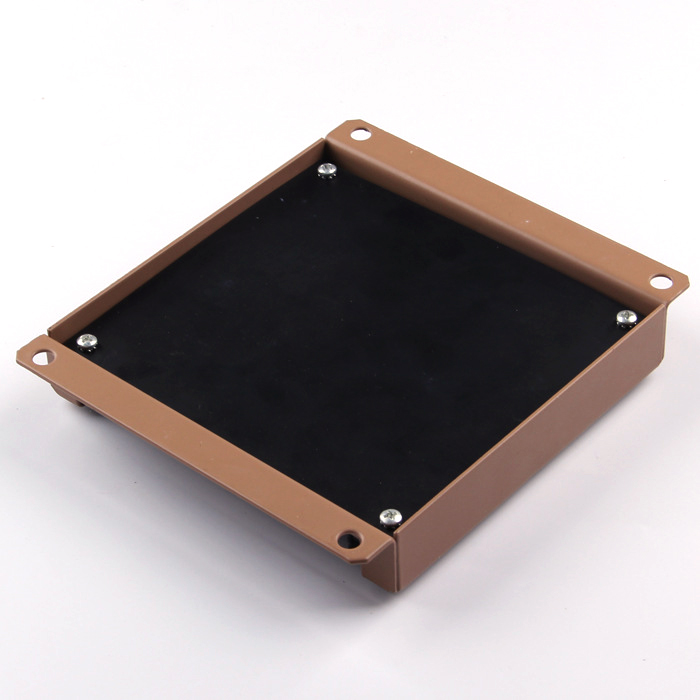

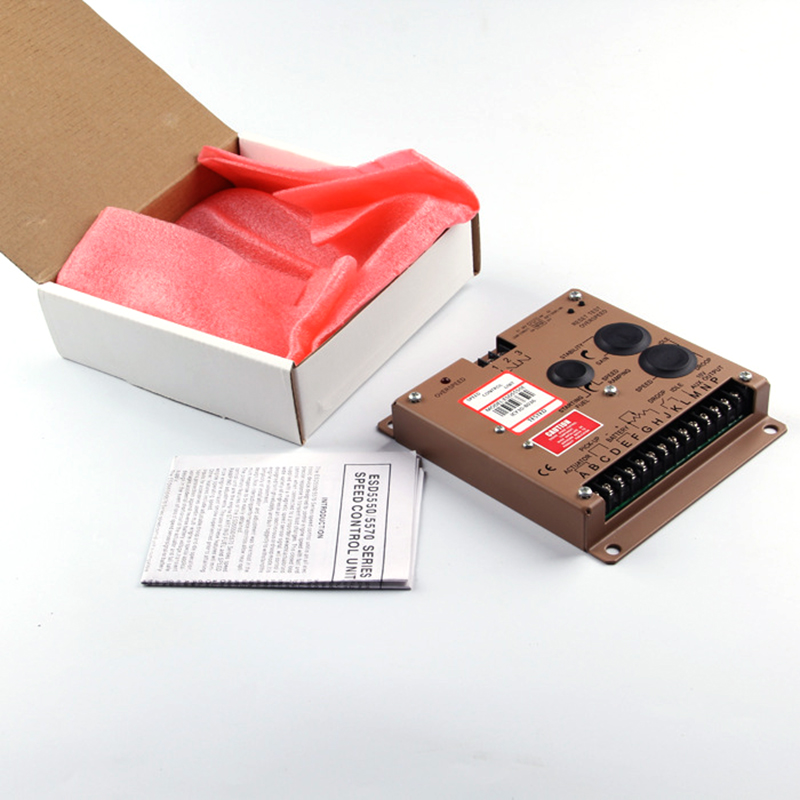

Diesel Generator Control Board ESD5550E is rugged enough to be placed in a control cabinet or engine mounted encosure with other dedicated control equipment. If water, mist or condensation may come in contact with controller, it should be mounted certically. This will allow the fluid to drain away from the speed control unit.
|
ESD5550E |
||
|
Input |
Supply |
12 or 24 VDC Battery System (Transient and Reverse Voltage) |
|
Polarity |
Negative Ground (Case Isolated) |
|
|
Power Consumption |
50 ma continuous plus actuator current |
|
|
Actuator Current Range @ 25 Deg. C - (Inductive Load) |
Min.2.5 Amps; Max. 10Amps continuous |
|
|
Speed Sensor Signal |
0.5-120 Volts RMS |
|
|
Performance |
Isochronous Operation/Steady State Stability |
±0.25% or better |
|
Speed Range/Governor |
1K to 7.5K Hz continuous |
|
|
Speed Drift with Temperature |
±1 Max |
|
|
Idle Adjust CW |
60% of set speed |
|
|
Idle Adjust CCW |
Less than 1200 Hz. |
|
|
Droop Range |
1-5% regulation |
|
|
Droop Adj. Max. (K-L Jumpered) |
400 Hz., ±75Hz. Per 1.0A change |
|
|
Droop Adj. Min. (K-L Jumpered) |
15Hz., ±6Hz. Per 1.0A change |
|
|
Speed Trim Range |
±200 Hz |
|
|
Remote Variable Speed Range |
500 - 7.5 Hz. Or any part there of |
|
|
Terminal Sensitivity J |
100 Hz., ± 15Hz / Volt @ 5.0 K Impedance |
|
|
Terminal Sensitivity L |
735 Hz., ±60 Hz / Volt @ 65 K Impedance |
|
|
Terminal Sensitivity N |
148 Hz., ±10 Hz / Volt @ 1 Meg. Impedance |
|
|
Terminal Sensitivity P |
10 VDC Supply @ 20 ma Max |
|
|
Environmental |
Ambient Operating Temperature Range |
-40 to +80 Deg. C |
|
Relative Humidity |
Up to 95% |
|
|
All Surface Finishes |
Fungus Proof and Corrosion Resitant |
|
|
Reliability |
Vibration |
1G, 20-100 Hz |
|
Testing |
100% Functionally Tested |
|
