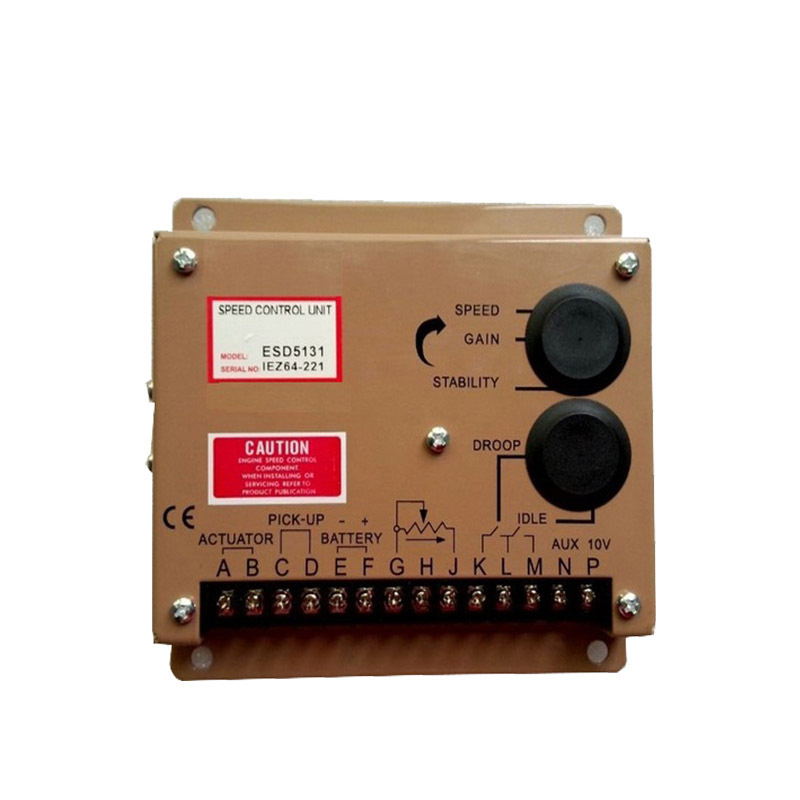

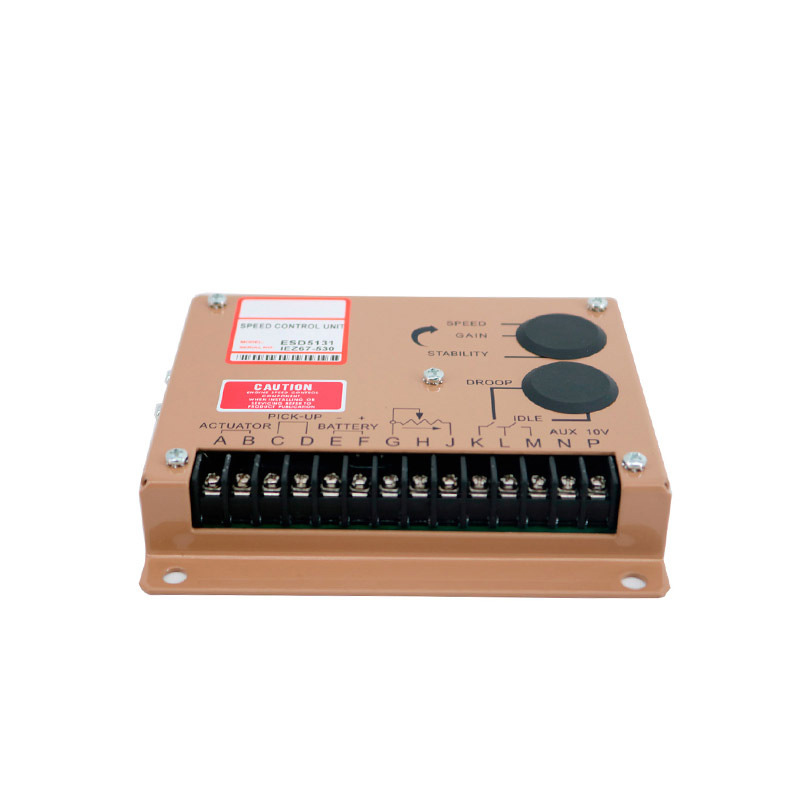

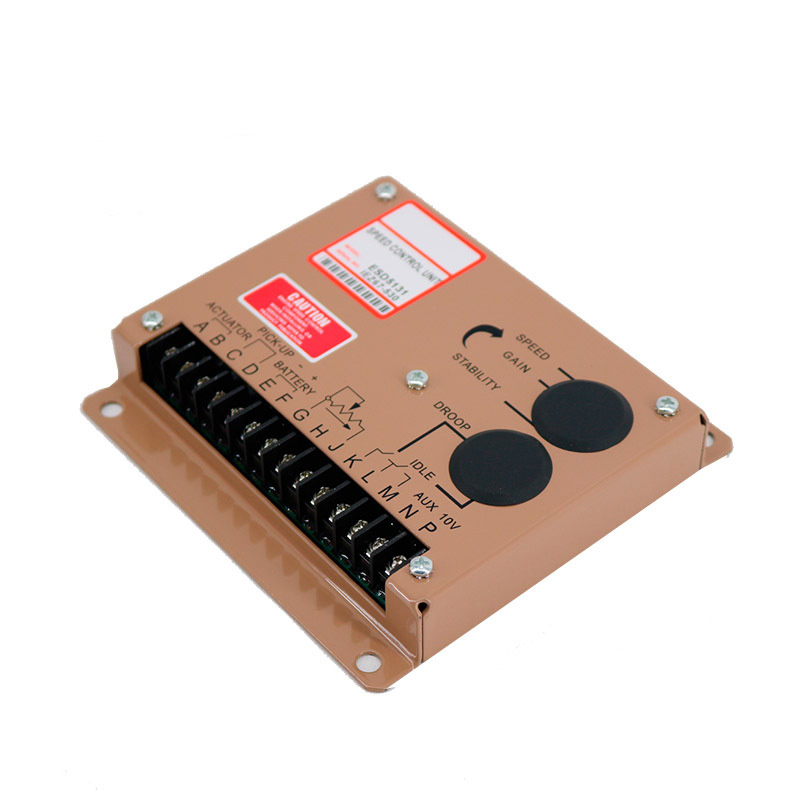

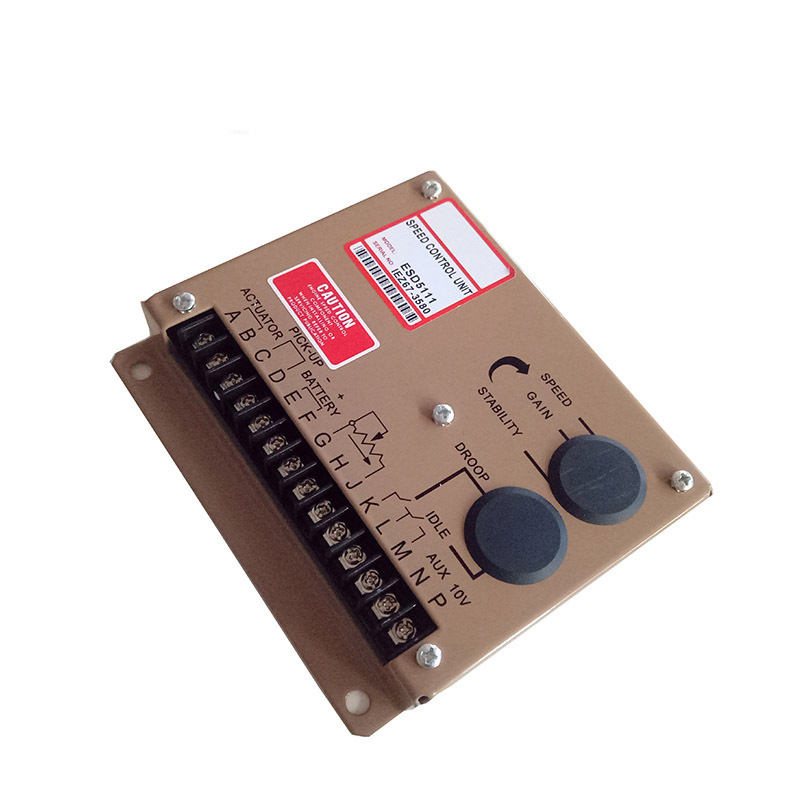

ESD5131 Speed Controller Designed to Control Engine Spearts
The Generator Speed Control Governor ESD5131 for Generator Parts is an all- electronic device designed to control engine speed with fast and precise response to transient load changes. This closed loop control, when connected to a proportional electric actuator and supplied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode. It is designed for high reliability and it's hard potted to withstand the engine environment.
1)Description The ESD5100 series speed control unit is an all electronic device designed to control engine speed with fast and precise response transient load changes.
2)Isochronous Operation/Steady Stability: +/-0.25% or better
3)Supply: 12 or 24 VDC Battery Systems(transient&reverse voltage protected)
4)Power Consumption: 50 ma continuous plus acutator current
5)Maximum Actuator Current at 25celsius(77celsius F): 10 Amps continuous
