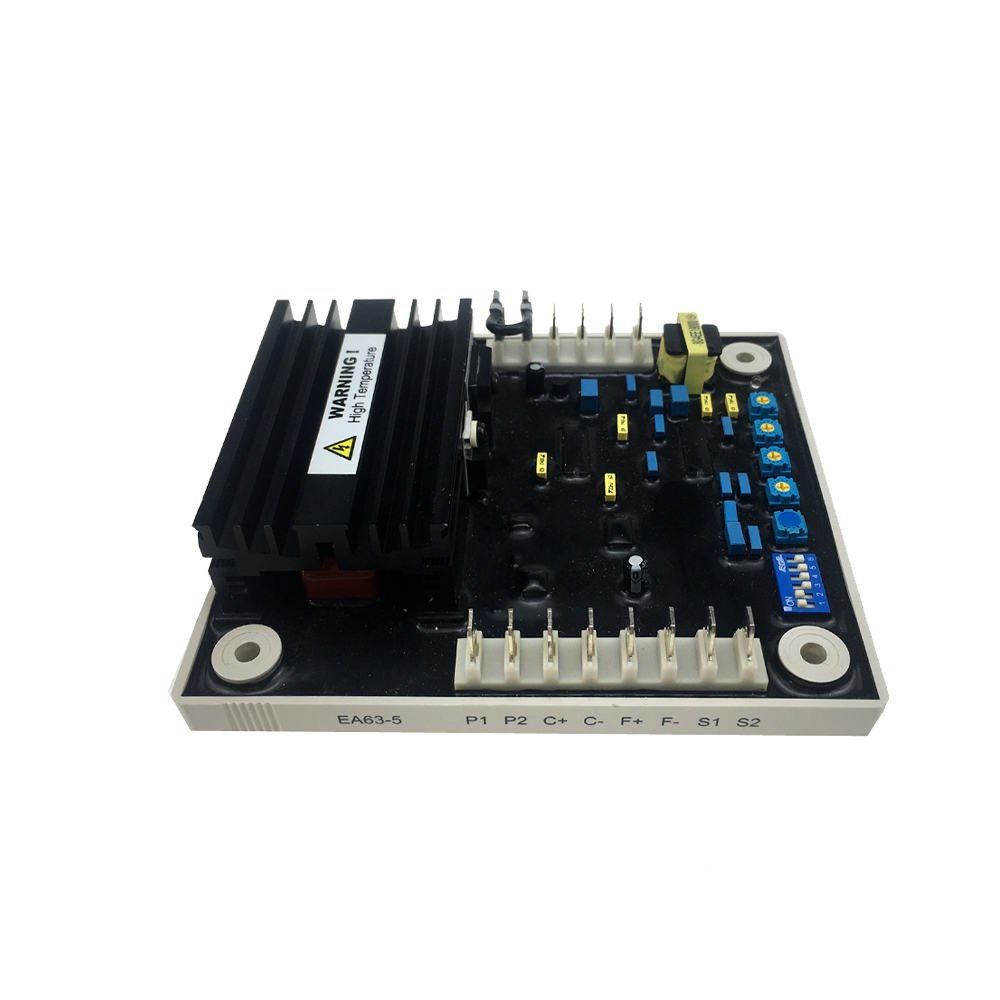

Generator Automatic Voltage Regulator Power Stabilizer AVR Ea63-5
Generator Automatic Voltage Regulator Power Stabilizer AVR Ea63-5

Generator Automatic Voltage Regulator Power Stabilizer AVR Ea63-5

Product ID : EA63-5
Product Description
5 Amp Automatic Voltage Regulator EA64-5 is designed for AMG   synchronous generator. It can also be used for Permanent Magnet Generator. EA64-5 can generator. It can also be used for Permanent Magnet Generator. EA64-5 can replace EA63-5.
NOTE : AlI manufacturer names, numbers, symbols and descriptions are used for reference purpose only and do not imply that any part is the product of these manufacturer.
Sensing Input (S1, S2)
Voltage
220/440 Vac, 1 phase Max.12 watts
190- 290 Vac @ 220 Vac
330-515Vac@440Vac
Frequency
50/60 Hz, SW1 selectable
Power Input (P1, P2)
Voltage
30 - 260 Vac, 1 phase
Frequency
40-500Hz
Excitation Output (F+, F-)
Voltage
Max.85 Vdc @ power input 110 Vac
Current
Continuous 5A Intermittent 10A for 60 secs.
Resistance
> 9 ohms
Fuse Spec.
Slow blow 5 X 20mm S505- 5A/ 250V
External Voltage Adjustment (VR, VR)

Max. +/- 5% @ 1K ohm 0.5 watt potentiometer

Max. +/- 10% @ 2K ohms 0.5 watt potentiometer

External filter capacitor terminal (C+, C-)
